Hydraulik cylinder
with simple outline

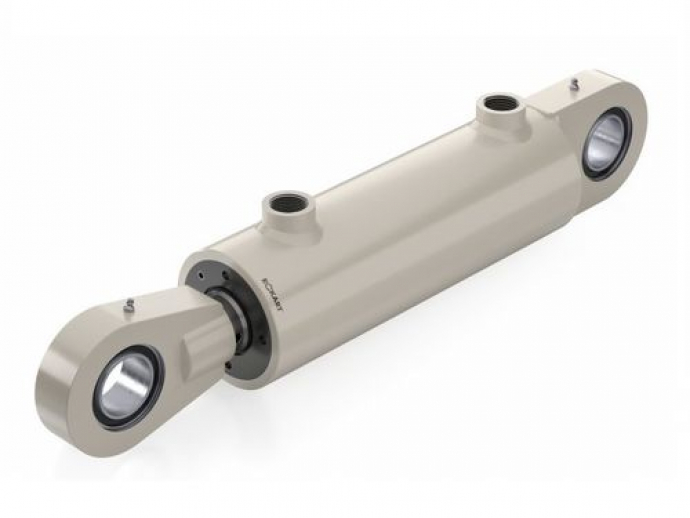

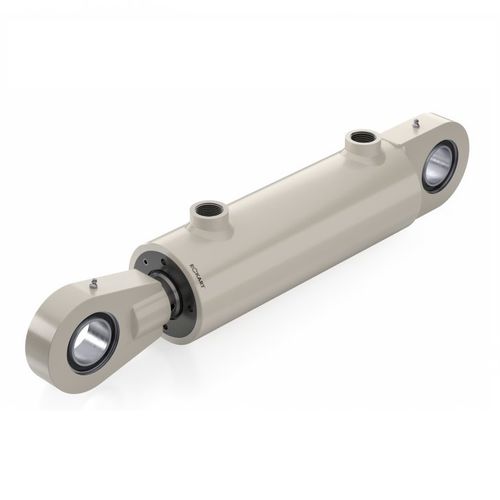

The EHZ is a hydraulic cylinder, which can be operated at an operating pressure of up to 250 bar. The EHZ standard cylinder is characterised by good sealing properties and its small size.

Owing to its flexible design, the cylinder can be precisely adapted to your particular application.

Advantages
•at a glance
•compact and robust
•simple outer outline
•special designs according to the request of the customer

Parameter Name	Parameter Value
Type	hydraulic
Configuration	double-acting
Other characteristics	compact standard
Stroke (mm)	0 - 4000
Force (N)	0 - 0
Pressure	Max.: 250 bar (3,625.9 psi)Min.: 5 bar (72.5 psi)
Speed (mm/s)	300 - 300
Ambient temperature	Max.: 70 °C (158 °F)Min.: -25 °C (-13 °F)
