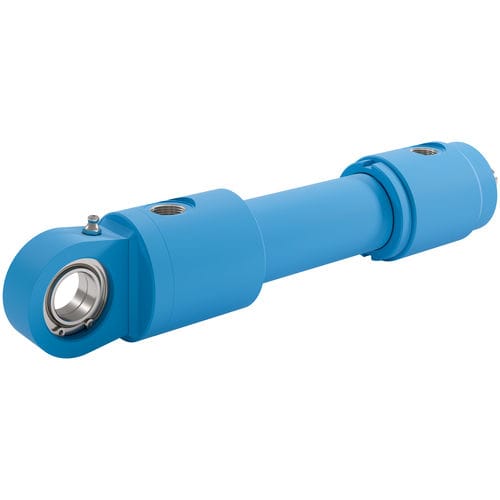

• Piston Ø 40-100 mm
• Modern seals and guide elements
• Simple replacement of wear parts through rugged screw system
• Subsequent retrofitting and revaluation possible through unit construction system
• Rod screw thread, non-toleranced dimension, position and size of the connections etc, can be implemented according to customer preference

Available with:
• Adjustable stroke-end damping
• Electronic proximity switches for end of stroke signals
• Electronic stroke measuring system available on application
• Water cooling for applications in high ambient temperatures
• Other versions available on request

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston
Configuration	double-acting single-acting
Material	stainless steel
Stroke (mm)	4000 - 4000
Pressure	Max.: 200 bar (2,900.8 psi)
Speed (mm/s)	500 - 500
Ambient temperature	Max.: 180 °C (356 °F)Min.: -20 °C (-4 °F)
Fluid temperature	Max.: 180 °C (356 °F)Min.: -20 °C (-4 °F)
