Nominal pressure 250 bar, piston Ø 40 ... 320 mm, piston rod Ø 22 ... 220 mm, stroke length up to 6000 mm

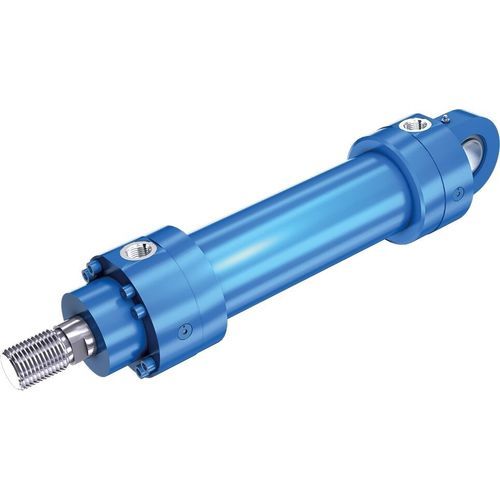

Hydraulic cylinder in mill type design, configurable online, with piston rod on one side.
Automated provision of configuration-specific dimensional drawing and 3D data.

Service-oriented modular system
16 types of mounting
6 types of mounting
Self-adjusting and adjustable end position damping
Patented safety vent for easy and safe bleeding
Easy assembly thanks to freely selectable position of the line connections at cylinder head and cylinder base

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston with piston rod differential
Configuration	single-acting
Stroke (mm)	40 - 320
Pressure	250 bar (3,625.9 psi)
Rod diameter	Min.: 22 mm (1 in)Max.: 220 mm (9 in)
