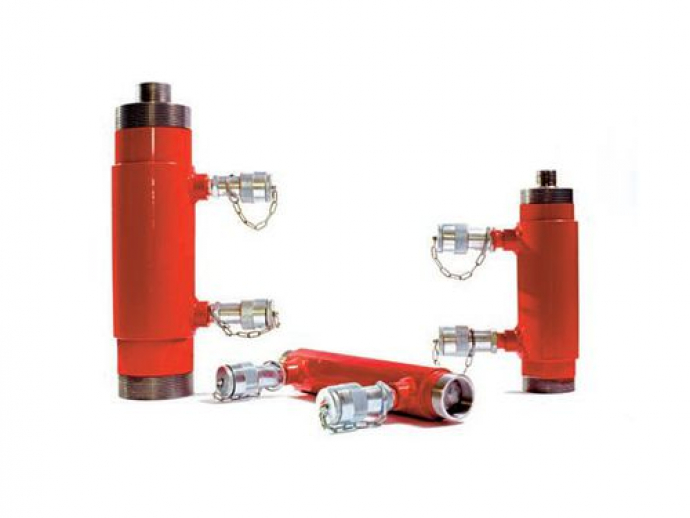

CDE Series are double acting Push pull hydraulic cylinders high cycle for intense production. Threaded into the body and the rod, these cylinders are interfaced with more complex mechanical machinery with high-frequency push and pull cycles in civil engineering laboratories and in locking systems. High tonnage lifting applications.

• A wide range of accessories, such as eye connectors, flanges, rings and plates, is also available.

• The stop ring not only guarantees maximum operator safety, preventing plunger over-stroke, but also outstanding eccentric load absorption.

• The wiper reduces contamination between ring and rod.

• Custom made double acting cylinders can be manufactured on customer request.

Push pull double acting cylinders
Double acting cylinders in high pressure. Pushing force from 5 to 100 tons with a stroke range from 25 mm to 360 mm. Extremely versatile hydraulic cylinders, suitable for high cyclefor intense production designed for long life, the best choice for production applications for pull and pushing operations. Operating pressure 700 bar.

Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston.

Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use.

Parameter Name	Parameter Value
Type	hydraulic
Configuration	double-acting
Protection class	robust
Applications	for presses
Other characteristics	traction type high-pressure high-performance
Stroke (mm)	30 - 260
Force (N)	22.9 - 309.3
