Hydraulic cylinder CB

About

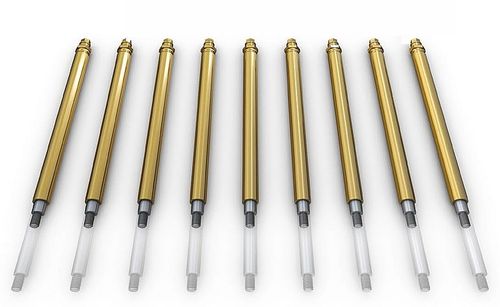

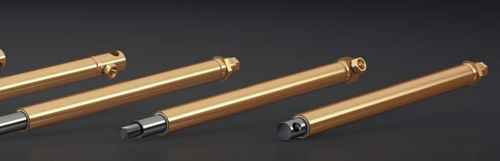

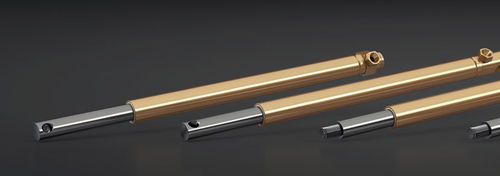

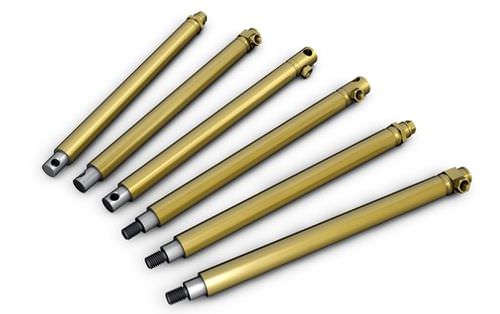

The cylinders are the basic elements of all our hydraulic linear units and table legs. They consist of a brass tube and have a piston rod made of stainless steel. Thanks to perfected technology and precision work, our cylinders guarantee a quiet, fast and precise lift for height and tilt adjustment.

With diameters of 16 and 20 mm, the slim hydraulic cylinders fit perfectly in narrow guides and existing applications.

Up to ten cylinders can be controlled simultaneously. This allows the realisation of very complex designs.



PARAMETERS

Parameter Name Parameter Value
Type
hydraulic
Configuration
double-acting
Applications
for furniture level adjustment
Stroke (mm)
49 - 67.5
Force (N)
1500 - 2500
Pressure
100 bar (1,450.4 psi)
Rod diameter
16 mm, 20 mm (1 in)
