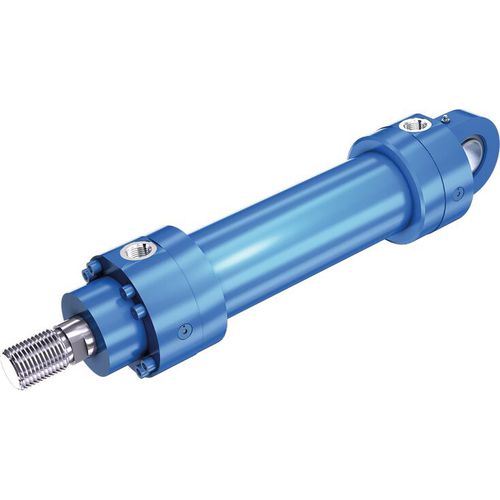

Hydraulic cylinder in mill type design, configurable online, with piston rod on one side.
Automated provision of configuration-specific dimensional drawing and 3D data.

Service-oriented modular system

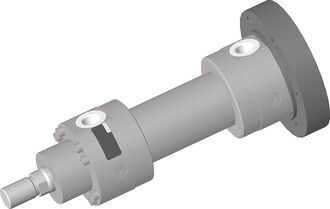

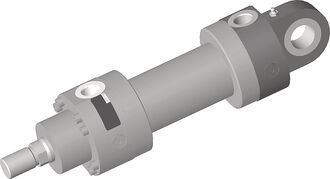

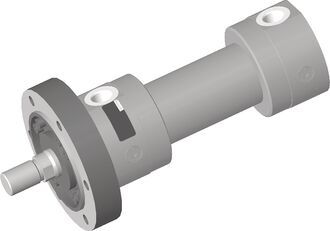

16 types of mounting
6 types of mounting
Self-adjusting and adjustable end position damping

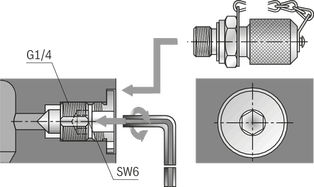

Patented safety vent for easy and safe bleeding
Easy assembly thanks to freely selectable position of the line connections at cylinder head and cylinder base

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston with piston rod cylinder differential
Norms	ISO
Other characteristics	standard round with adjustable cushions flat flange trunnion self-aligning
Stroke (mm)	0 - 6000
Force (N)	10 - 1060
Pressure	250 bar (3,625.9 psi)
Rod diameter	Max.: 220 mm (9 in)Min.: 22 mm (1 in)
Speed (mm/s)	0 - 300
Ambient temperature	Max.: 80 °C (176 °F)Min.: -25 °C (-13 °F)
