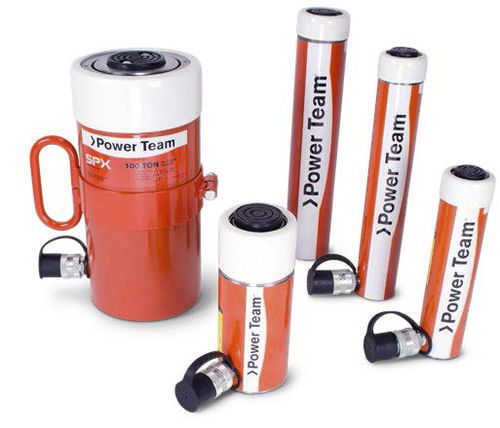

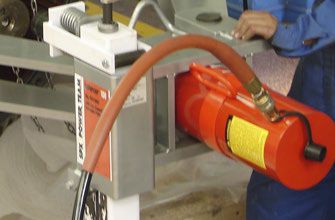

Single-Acting, Spring-Return high quality, general purpose cylinder used for lifting and pressing. Designed to utilize aluminum bronze bearings to significantly reduce wear. Piston return speed and spring life are bolstered by Maximum sized springs. Constructed for durability, using a Solid steel cylinder body for integrity. Chrome plated piston rod resists wear and corrosion adding to the cylinder’s life cycle. Intricately customizable through the wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.

Features
RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING.

■ Aluminum bronze bearing reduces wear caused by off-center loads.
■ Maximum sized springs speed piston return and increase spring life.
■ Collar threads are standard on all C-Series models, simplifying fixturing applications.
■ Removeable rubber boots protects collar threads during transport and storage.
■ Solid steel cylinder body for durability.
■ Chrome plated piston rod resists wear and corrosion.
■ Wide range of accessories available that mount onto the piston rod, collar, or base.
■ Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders.
■ A 3/8" NPTF female half coupler is standard.
■ Complies with ANSI / ASME B30.1 safety standards

Parameter Name	Parameter Value
Type	hydraulic
Technology	with piston rod
Configuration	single-acting
Material	aluminum, steel
Protection class	rugged
Applications	for lifting for presses
Other characteristics	wear-resistant
Force (N)	100 - 100
Pressure	Max.: 10.1 psiMin.: 8.9 psi
Rod diameter	Max.: 4 inMin.: 1 in
Bore	Max.: 5 inMin.: 1 in
