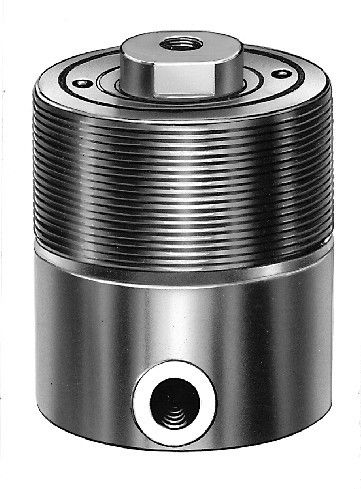

Hydraulic cylinder B1.7441

Hydraulic cylinder B1.7441

Hydraulic cylinder B1.7441

About


Hollow-piston cylinders

version with internal thread
single and double acting
max. operating pressure 500 bar
max. pushing force: 10 - 153 kN
max. pulling force 10 - 188 kN
clamping stroke: 6 - 40 mm
piston diameter: 20 - 80 mm
internal thread: M6 - M24
external thread: M40 - M120



PARAMETERS

Parameter Name Parameter Value
Type
hydraulic
Configuration
  • double-acting
  • single-acting
Stroke (mm)
6 - 40
Force (N)
10 - 153
