Cylinder barrel from steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamping arm positioning. O-ring for flange seal. Wiper at piston rod. Oil supply via threaded port or oil channel in fixture body.

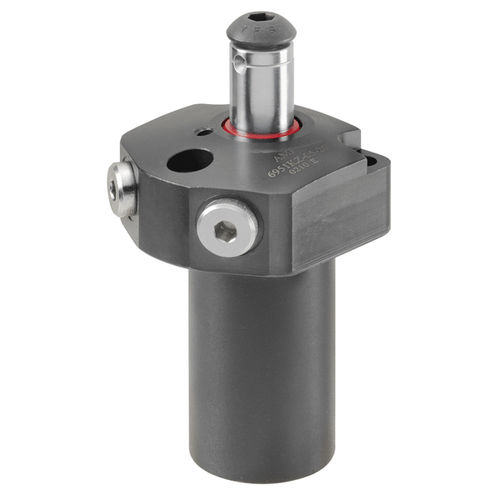

Universal Push-Pull Cylinder for various applications.

Each cylinder size is available for single or double-acting operation. Various thrust pieces can be attached in the tapped piston rod ends. Clamps can be attached, as with the swing clamps.

The piston stoke is guided, respect Q max. volume flow. When mounting accessories at the piston, no force may be applied to the piston. When placing into operation, ensure that all air is bled from the system.

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston
Configuration	double-acting single-acting
Material	steel
Other characteristics	guided flange pull
Stroke (mm)	14.5 - 29.5
Force (N)	2.2 - 27.7
