Block cylinders are popular design elements in all areas where very powerful short strokes are required. Block cylinders have internal piston rod threads for secure screw-in contact bolts. Their compact cubic shape facilitates attachment and guarantees high operating pressures. Various versions of hydraulic oil feed cover the whole range of applications.

The HYDROKOMP block cylinders offer technical advantages in the area of the seal at the piston-rod end. A double hydraulic seal is used here as standard, guaranteeing extremely low leakage in continious operation. All block cylinders are also equipped with a metal wiper ring, which prevents any metal shavings from penetrating into the soft wiper ring.


double-acting:
The double-acting function permits precise stroke times as the piston is extended and retracted. Extension and retraction strokes are force-actuated.


single-acting:
HYDROKOMP offers single-acting block cylinders with or without spring return. With a spring reset function the piston is pulled by the spring into the start position when depressured. Block cylinders without reset spring do not have an automatic piston return.

Special features:
ideal for continuous operation
space-saving installation
four mounting options
metal wiper as standard

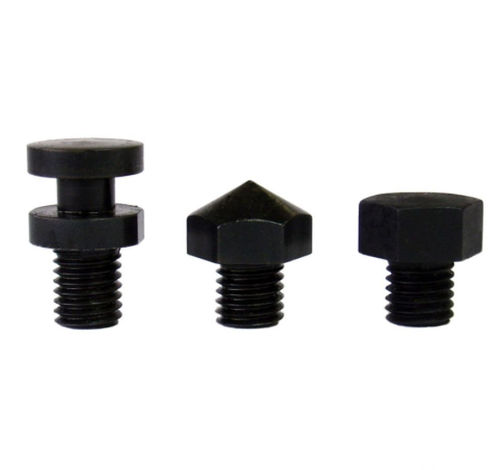

internal piston threads for secure screw-in eg. contact bolts
standard cylinders and special design available



PARAMETERS

Parameter Name Parameter Value
Type
hydraulic
Technology
piston
Configuration
  • double-acting
  • single-acting
Other characteristics
  • compact
  • threaded
  • block
  • double
  • standard
Stroke (mm)
8 - 200
Force (N)
1.2 - 392
