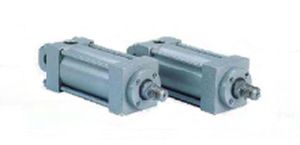

DOUBLE-ACTING HYDRAULIC CYLINDER
Piston diameter: 90 - 600 mm
Stroke: 0 - 8000 mm
Working pressure: up to 600 bar
Customised made of steel: material quality depending on requirements or desired properties
Various mounting types
Various options for:
- Sealing system
- Fastening types
- Damping
- Coating / painting
PROPERTIES
Type hydraulic
Double-acting configuration
Areas of application Demanding: Industry, mobile hydraulics, cranes,
hydraulic steel construction, steel industry, maritime applications
Piston diameter Max. 600 mm
Stroke Max. 8000 mm
Working pressure Max. 600 bar
Standard speed ≤ 0.5m/s
Working temperature -20°C / +80°C
Other features Cylinder head and base welded or bolted
Types of fastening As required: hinge eyes, forks, trunnions, etc.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
hydraulic
|
| Technology |
piston
|
| Configuration |
double-acting
|
| Material |
steel
|
| Applications |
|
| Stroke (mm) |
0 - 8000
|
| Pressure |
Max.: 600 bar (8,702.3 psi)Min.: 0 bar (0 psi)
|
| Speed (mm/s) |
500 - 500
|
| Ambient temperature |
Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
|
