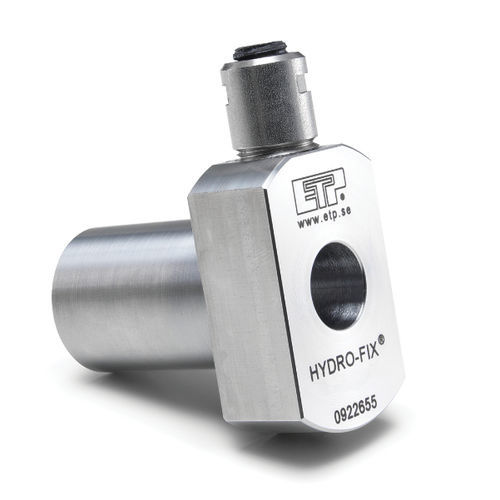

ETP HYDRO-FIX S clamping units are excellent for static front and back operations such as drilling, reaming and boring. With the one screw fix system it is quick and easy to handle. Precision hydraulic tool centering is achived and therefore the tool life and setup time is improved. The clamping unit allows for larger/deeper drilling, quick tool changes, absorbs/reduces vibration, improves suface quality and best of all – Increases your productivity!

Benefits & Features
Replaces ER11 – ER32 collet holders.

Use larger and longer tools.

Shank clamping range: 1 to 25 mm and 1/8" to 13/16” using reduction sleeves.

Quick and easy handling.

Reduced vibrations.

Improved surface quality & Increased tool life.

Parameter Name	Parameter Value
Type	hydraulic
Other characteristics	centering quick
