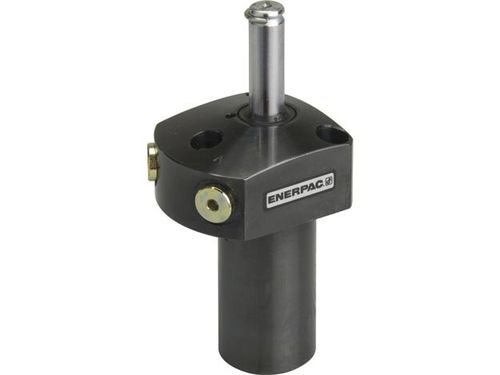

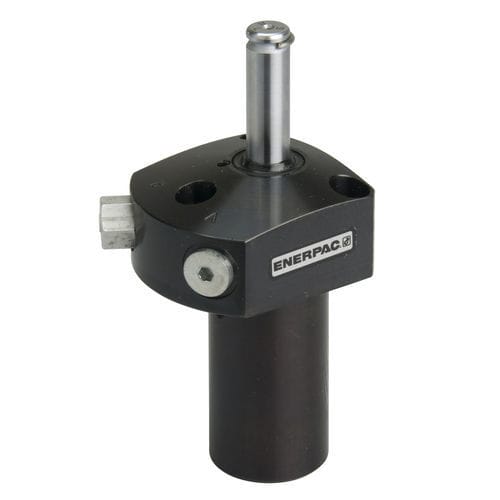

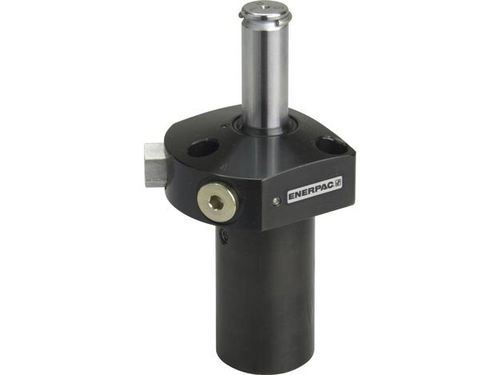

Hydraulic clamp SU series

Hydraulic clamp SU series

Hydraulic clamp SU series

About


Description
Series : SU
Product Lines : Workholding Tools
•Flexible design allows for manifold or threaded port connection
•Low profile mounting style allows body to be below mounting surface
•Simple mounting preparation and easy installation with only 3 or 4 mounting bolts
•Double oil connection – threaded port or manifold mount
•Symmetrical rectangular flange design enables clamping at three sides of the cylinder
•30, 45, and 60 degree swing angles available on request
•The Enerpac upper flange swing clamps are designed for integrated manifold mounting solutions. Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated O-ring ports.



PARAMETERS

Parameter Name Parameter Value
Type
hydraulic
Other characteristics
  • swing
  • double-acting
  • low-profile
  • single-acting
  • flanged
Clamping force
8 kN, 9 kN, 10.7 kN, 11.6 kN
