GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：28N ( 20mm from the flange )
Max. Axial Force：10N
Rotation：CW
Insulation Class：B (130℃)

Parameter Name	Parameter Value
AC/DC	DC

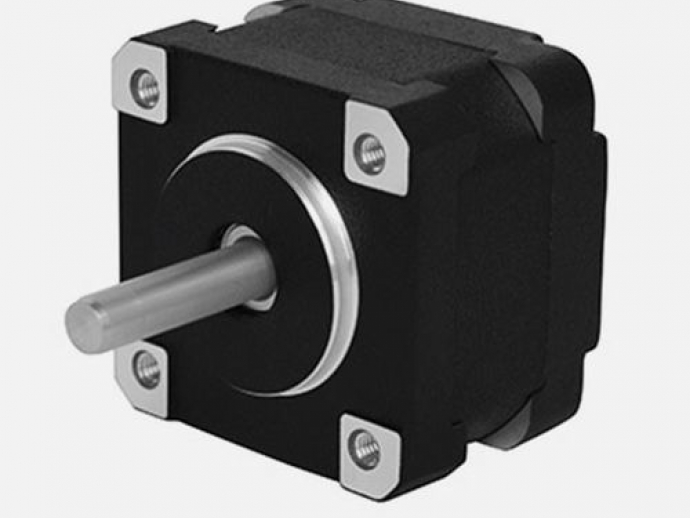

Type	hybrid stepper
Torque (Nm)	0.05 - 0.05 0.08 - 0.08 0.18 - 0.18 0.25 - 0.25
