Size 6 [14mm]

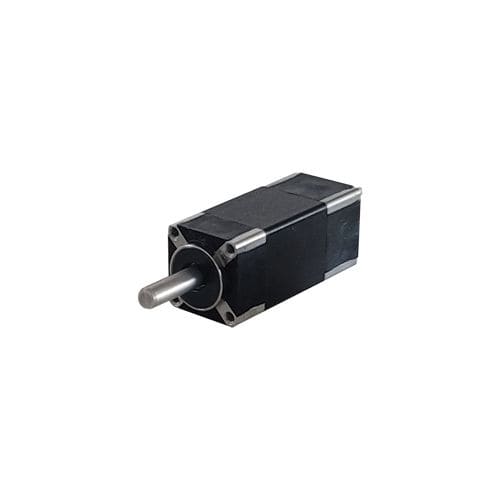

Hybrid Rotary Stepper Motor

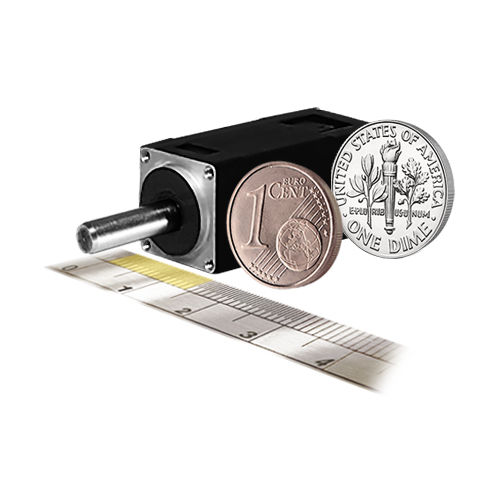

The size 6 [14mm] which is smallest hybrid rotary stepper motor from DINGS has Max. 0.01Nm of holding torque.

Material
End bell : Aluminum alloy
Bearing : Deep groove ball bearing
Magnet : Sintered NdFeB
Shaft : Stainless steel
Wiring : UL 3265, 28 AWG

Parameter Name	Parameter Value
AC/DC	DC
Type	hybrid stepper
Voltage (V)	24 - 24
Configuration	aluminum stainless steel small
Applications	with built-in encoder
Other characteristics	two-phase DC
Intensity (A)	0.3 - 0.3
Torque (Nm)	0.005 - 0.005
Rotational speed (rpm)	0 - 2100
Diameter (mm)	14 - 14
