Hybrid drone CW-25

in UAVs

Hybrid drone CW-25
in UAVs

Hybrid drone CW-25

in UAVs

About


100km/h
Cruising speed

7000m
Max Service Ceiling

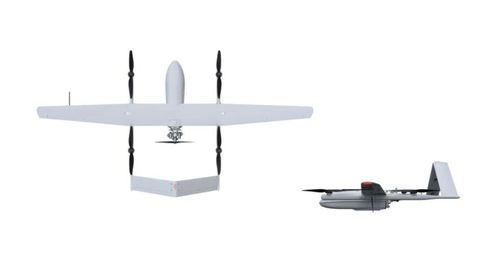

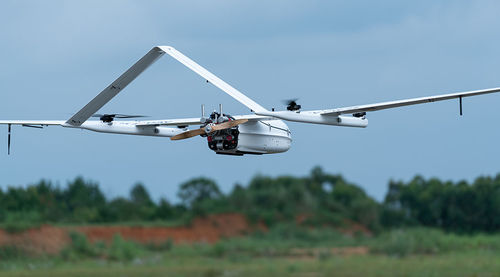

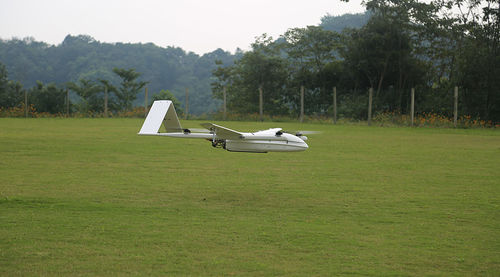

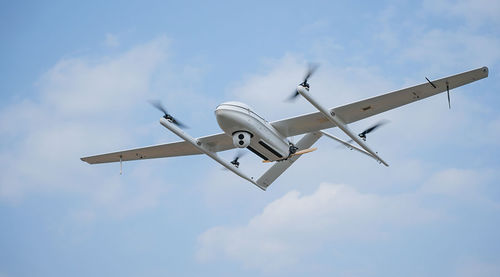

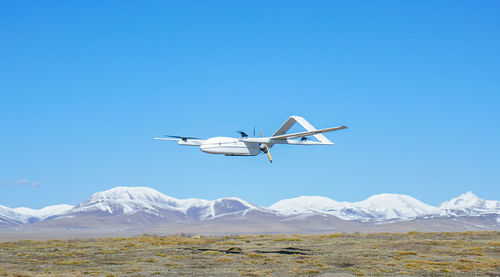

The CW-25 is a hybrid (battery and petrol) VTOL fixed-wing UAV platform designed for large-area missions. The CW-25 has a long service life, is fast, has a large payload, is structurally stable and reliable, and can fly continuously at high altitudes.

Benefits and Features
With the continuous technical updates , our drones bring many actual benefits to our customers, including saving time and cost, getting more comprehensive data, keeping personnel safe, etc.

Outstanding Performance
Vertical takeoff and landing, 4500m max take off attitude, 7000m max flight ceiling, up to 200km data link and 6 hours endurance.

Advanced Flight Control and Navigation System
Integrated high precision MEMS inertial sensors, high-performance CPU, Dual-GPS position system, powerful EFI engine for large-area missions.

Modular design
Utilizes quick connection structures and disassembly to 11 parts for transportation in SUV type vehicle.

Fully Auto
No need of radio control, one-button take-off and landing, safe and easy, with less than 15 cm of landing accuracy.

Multiple Payload Sensor
Up to 6kg payload capability with multiple options, such as aerial camera, LiDAR , Mini Sar , EO/IR gimbal camera, aeromagnetic sensor etc.

RTK and PPK Function
This means centimeter-level autonomous vertical landing and high-precision POS data.

High Flight Safety
Dual GPS and Dual compass, advanced flight control and navigation system, auto return if GPS timeout, data link timeout etc.

Super Environmental Adaptability
Fly in high altitude, high humidity, low temperature, and light rain condition with self-heating airspeed pitot tube.



PARAMETERS

Parameter Name Parameter Value
Type
  • fixed-wing
  • hybrid
  • VTOL
Applications
  • inspection
  • mapping
  • for industrial applications
  • monitoring
Other characteristics
  • autonomous
  • mini
Endurance (min)
330 - 360
Payload (kg)
6 - 6
