HVAC Explosionproof Control Systems.

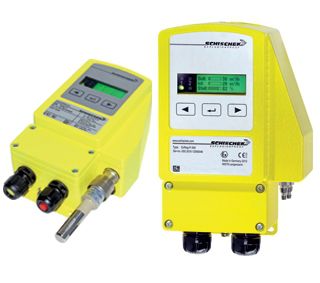

The ExReg controller system has been designed for use in Ex areas for all gases, mists, vapours and dust. In combination with Ex-Max actuators it is a closed loop control system for volume flow control (VAV, CAV), pressure, temperature and humidity.
Operating temperature range -20 to 50 ºC (-4 to 122 ºF)
Measurement differential pressure range 0 Pa to 300 Pa
Measurement temp. range -40 to +125 °C (-40 to 257 ºF)
Measurement humidity range 0 to 100% rH
1-phase and DC power supply options
Stainless steel housing option
Certificates: ATEX, IECEx, CSA and others
Water and dust-tight IP66 rating, integrated junction box
Integral PID loop
Pre-defined parameter sets for the most common control tasks
Can be configured on site in the hazardous location
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Product applications |
for HVAC installations
|
