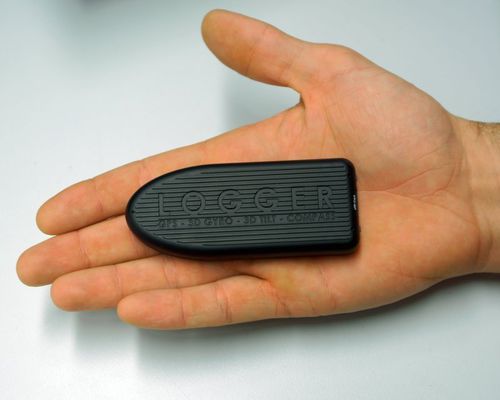

The Aaronia GPS - Logger includes a total of 6 sensors, all of them on the cutting edge of technology, making it the world's first stand-alone data logger with such a variety of sensors. Not to forget is also the very small form factor and the extremely high data rate of approx. 35 logs/second (freely adjustable). The logger with battery weighs just 88 grams

The following sensors are integrated in the logger:
- High End GPS sensor incl. antenna position, speed and altitude information with a sensitivity of -165 dBm and accuracy of 1.8 m (CEP95)
- 3D compass with 1-2 degree precision
- 3D/Triaxial acceleration sensor with up to 4 mg resolution
- 3D/Triaxial Gyro / Tilt sensor with a sensitivity of 14 LSBs per second
- Altimeter / Pressure sensor with very high accuracy / resolution and a wide pressure range of 260 - 1260mbar and a height resolution of up to 20cm
- Temperature range -20 to 45° Celsius
- Humidity < 90% RH

The main purpose of the GPS logger consists of recording the position and even the orientation of Aaronia antennas (HyperLOG X , HyperLOG EMI or Magnotracker series).
The GPS sensor allows for easy collection and documentation of your measurement position, including elevation information.
Even more interesting is the Tilt-sensor and the digital compass, hereby the inclination and orientation of the antenna can be recorded and evaluated during the measurement. This special feature allows you to easily create an " RF heat map " including frequency, direction and strength of an RF source within 360 degrees.

Parameter Name	Parameter Value
Measured quantity	temperature, pressure, humidity, universal, frequency, acceleration, tilt
Connector type	USB
Display	without display
Applications	for automotive applications GPS dynamic test
Other characteristics	programmable stand-alone digital triaxial
