Sprockets single 3/8" x 7/32" DIN ISO 606, ready to install

Material:
Steel C45.

Version:
Bright.
Teeth inductively hardened ~HRC 50.

Note:

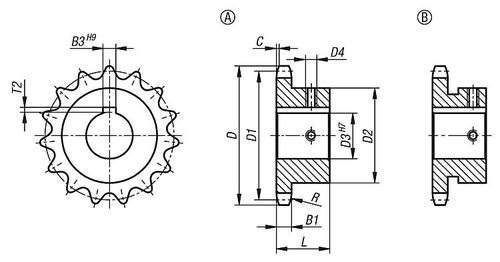

Ready to install sprockets with hub on one side for DIN ISO 606 roller chains. Teeth are milled and inductively hardened.
Keyway acc. to DIN 6885 / BS 4235. The keyway is aligned with the tooth tip.
With two grub screws. One tapped hole aligned with the keyway centre, the other offset by 90°.

Parameter Name	Parameter Value
Other characteristics	hub for chains steel
