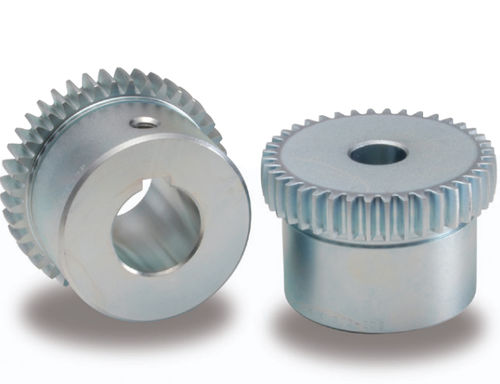

Module 2, 25 Tooth, 12mm Bore, Mild Steel Gear Coupling Inner Hub
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$45.12$43.24$41.39$39.55Request For Quote
Lead Time2 wks2 wks3 wks3 wks

Product Specifications

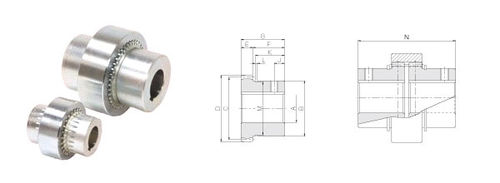

(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)

Pitch Diameter (C)50.00
Module2
No. Of Teeth25
Hub ConfigurationNo Keyway / Set Screw
Matching Outer RingKCG1-I
Hub Diameter (B)45.00
Hub Width (F)25.00
Face Width (E)10.00
Length (G)35.00
Bore (A)12.0
