For application as ➧ Overrunning Clutch for multi-motor drives in which a drive is automatically disengaged when it is no longer supplying power.

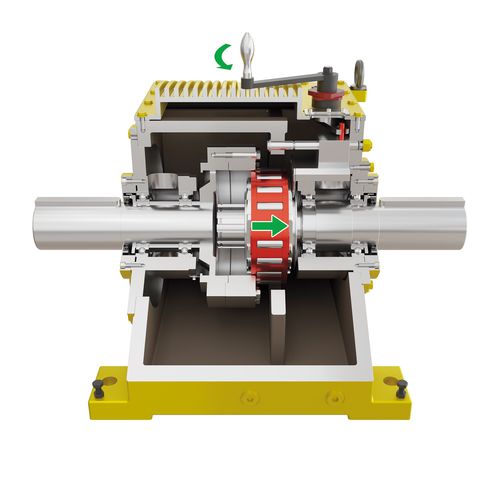

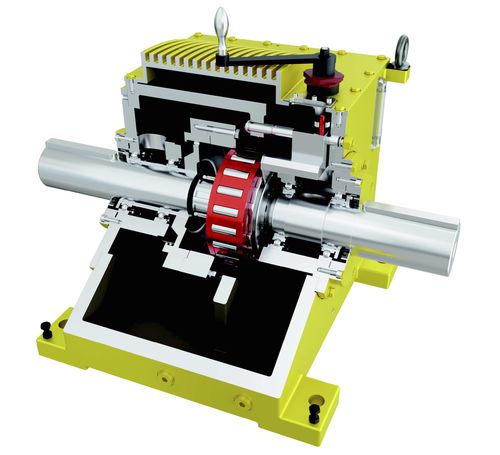

Housing Freewheels FHD with hydrodynamic roller lift-off are typically used in cases where an assembly can be driven from two or more motors or turbines at the same or similar high speed.They allow a continuous plant operation in the event that one of the energy sources or a drive line fails as well as energy saving in the case of partial load operation. For safe system maintenance, the Housing Freewheels FHD are equipped with a mechanical separation function to decouple the input drive from the output drive train.

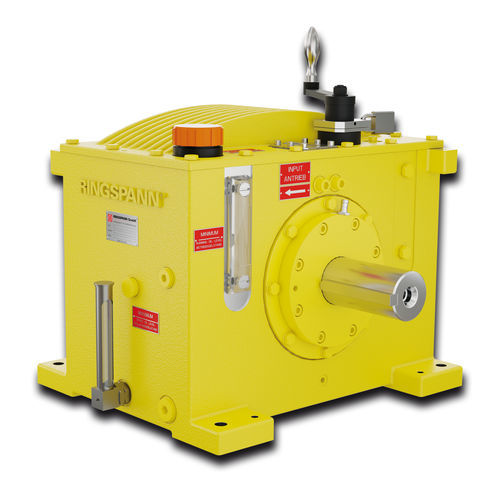

The Housing Freewheels FHD are completely enclosed freewheels for stationary arrangement with input and output shaft.
Advantages
• Nominal torques up to 24 405 Nm
• Wear-free operation
• Low noise
• Very high efficiency with low heat generation
• Integrated oil filtration system
• Oil change without downtime
• Meets OSHA "Lockout-Tagout" requirements
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
roller
|
| Construction |
housed
|
| Applications |
overrunning clutch
|
| Torque (Nm) |
|
| Diameter (mm) |
412.5 - 660
|
| Rotational speed (rpm) |
2300 - 5600
|
