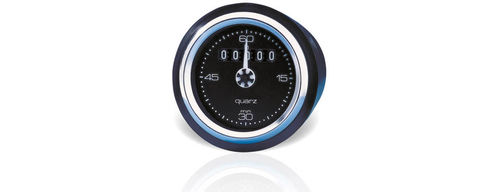

Hour counters, 10 – 80 V DC, with minute indicator, ø 52 mm with black-chromed 3-edge-frontal ring
These quartz-operated hour counters for the utility vehicle industry have stood the test of decades. They have an elevated design, are robust, with water-proof front-face and available for the 52 or 60 mm panel cutout. The time is rapide and easily readable with the circulating minute hand.
Reset:
No
Counting range:
99999 h and 0 - 60 minutes
Digits char. height:
2 x 4 mm, white on black
Voltage:
10 – 80 V DC (1,4 – 15 mA)
Special voltages (at additional cost):
2 – 20 V DC (1,5 – 27 mA)
80 – 220 V DC (1,4 – 4,5 mA)
Ambient temperature:
–40 °C to +80 °C
Fixing:
Metal bolt
Approval:
CE
Operation indication:
Yes
Connection:
Short circuit and reverse battery protected
Vibration resistance:
Tested on 3 levels at 45 Hz, amplitude ± 0,5 mm each level, electronic and plastic version = little specific weight
Time divergence:
Only 0,01 % in 24 h; compared to the electromechanical counters no after-running differences arise on the indication
Weight:
Approx. 110 g

Parameter Name	Parameter Value
Type	hour
Display	digital analog
Technology	electronic electromechanical vibration
Protection level	IP65
