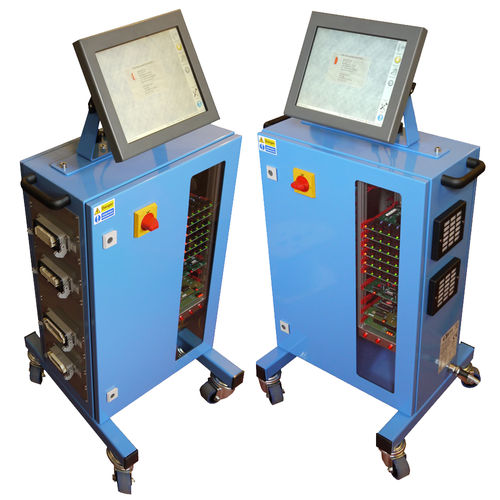

The CM8 system is a proven range of hot runner temperature controllers. Designed for injection mould tools in the range 12 to 256 zones, the CM8 incorporates a straight forward mechanical approach to improve reliability with advanced software techniques to provide class leading control and features.

12 to more than 256 zones
Modular card format: 3.15A, 16A or 32A cards
Large, impact resistant screen
Supplied with ultra tough conduits
Connectors wired to customer standard
USB, smartphone, network & Wifi capable
Full diagnostic suite and troubleshooting tools
History logs and downloadable reports via USB

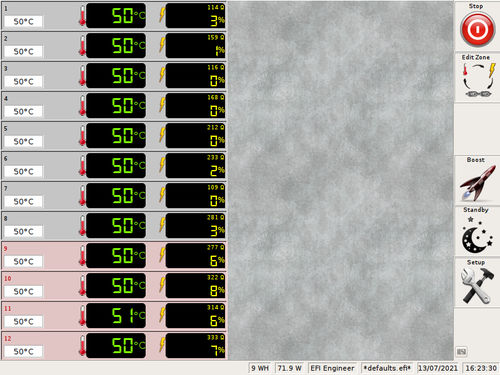

The CM8 hot runner controller system uses a 12" reinforced touch screen mounted to the top of the controller. The software is intuitive and allows for quick access to all key functionality of the controller through the menu system on the right of the screen.

The CM8 hot runner controller is capable of automatically logging a wide variety of data pertaining to its use and status. These logs are stored locally on the controller for 1 year and can be exported over USB to a simple text file for use with a word processor on a PC.

There are many types of logs stored, including: System logs, including hardware errors and various communications such as start time; Controller logs, recording when a controllers' mode is changed; Setup logs, recording whenever setup information is changed, e.g. zone setpoints; Alarm logs, including when an alarm is triggered and dismissed; File logs, containing all file operations and User logs, when an operator logs on or off.

For easier viewing, the logs can be filtered by type or by date when being accessed on the controller.

Parameter Name	Parameter Value
Display	with touchscreen
Protection level	standard
Use	hot runner
Other characteristics	modular mobile
