• Hot bolt clamp are used to maintain the integrity of a connection and in the meantime allow to replace the corroded or damaged studs.
• Pipeline remain in service and maintenance can be done without any shutdowns.

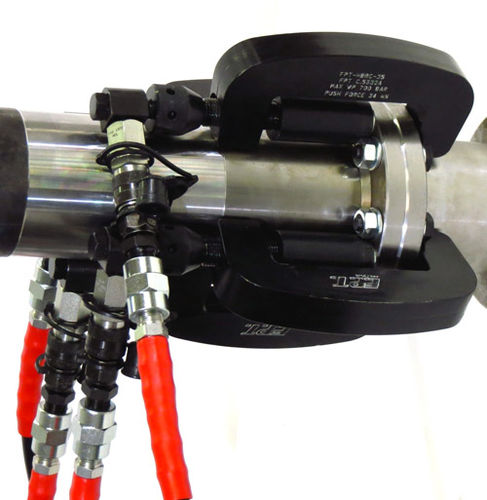

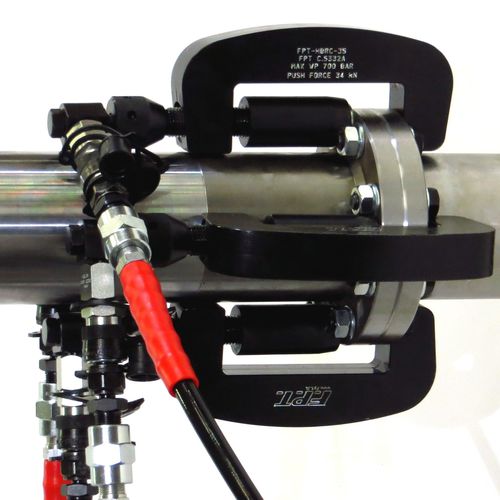

• The standard system consists of 4 FPT Hot Bolt of 34 kN with a thrust of 10 mm and a maximum pressure of 700 bar, a manual pump FPT model PMSA2, manifolds, pipes, connections and accessories for operation. Each Hot Bolt has a special treatment to protect against corrosion. Product code: KIT-4HBRC-35
FPT is a manufacturer of Hot Bolt & Industrial Clamp System with application in the all industry and in the oil & gas sector.

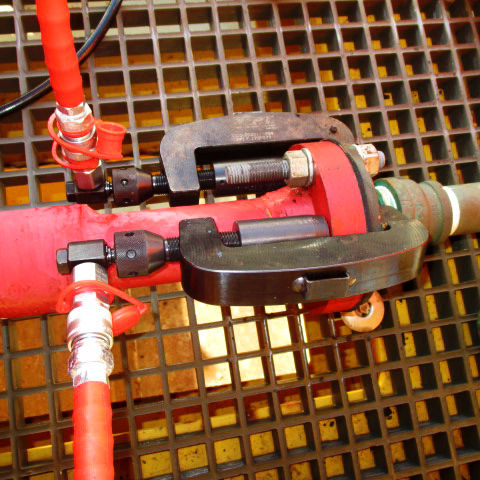

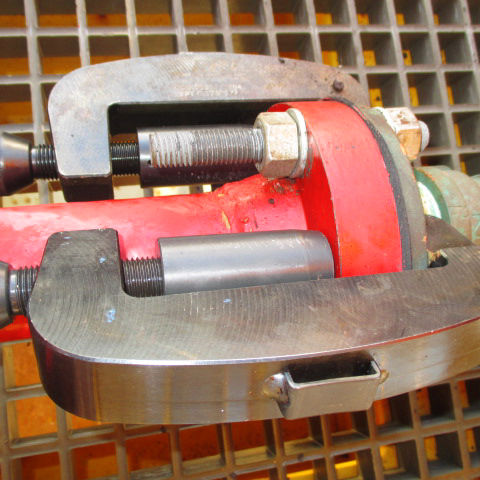

The system have been designed for removing rusted nuts on a pipeline where it is a key task to remove and replace corroded or damaged nuts without stopping the production. The Hot Bolt Clamp System maintains the integrity of a connection allowing corroded or damaged studs to be replaced on a safe way.
The standard system is composed by 4 pieces of FPT Clamp each one of 34 kN with a stoke of 10 mm and a max pressure of 700 bar, the FPT hand pump model PMSA2, manifold and full connection and accessories to operate. Each clamp has a special treatment to be protected from corrosion.
As option can be used an electric pump, an air pump or hand pumps with multiple outlets and the system can be personalized following customers specification and needs. Custom made clamping system can be realized following the different projects needs, FPT has more than 50 years of experience on manufacturing high pressure equipment and a team of technicians will take care of the customers applications.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
