Description

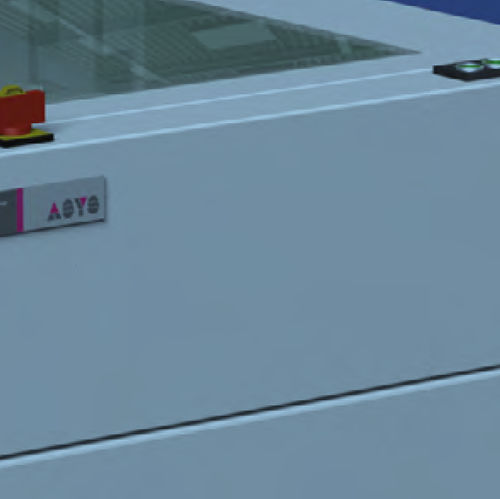

The Turn Table is typically located in a SMD line which requires a 90 degree turn or a sorting feature. The conveyor segment is mounted on an pneumatic turn table and PCBs are routed
based upon the run mode or an external signal. Possible run modes are pass through, load, offload and sort. The powder coated steel frame ensures process stability and excellent
durability.

Features
_ Turn
_ Start / Stop push button
_ Anti-static conveyor belts
_ SMEMA Interface

Options
_ Transport height 850 mm ± 50 mm
_ Electrical width adjustment
_ Inlet conveyor 530 mm b) c)
_ Outlet conveyor 530 mm b) c)
_ T-Controller function

Parameter Name	Parameter Value
Configuration	horizontal
Other characteristics	pneumatic
