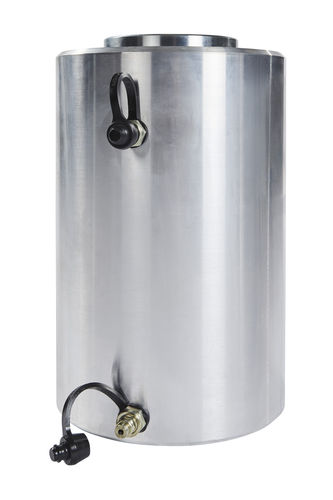

LUKAS hollow piston cylinders lift loads - and pull solid elements off shafts, press bearings in or tension steel cables. Due to their lightweight construction, they are particularly user-friendly, which makes them much easier to use in all positions.

Advantages

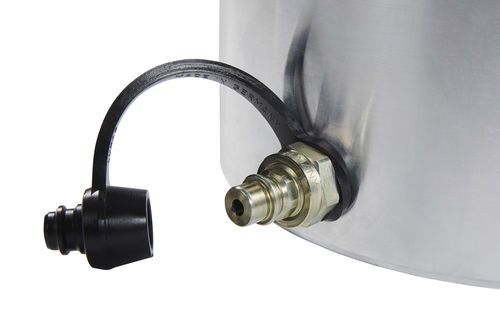

•Overpressure protection through the StNi 6-D safety nipple
•Quick-release couplings and quick-stop system
•High side load compatibility
•Scraper rings reduce contamination and wear
•Fully loadable stroke limits
•Hydraulic retraction improves working speed and control
•Faster piston retraction
•Significantly reduced weight

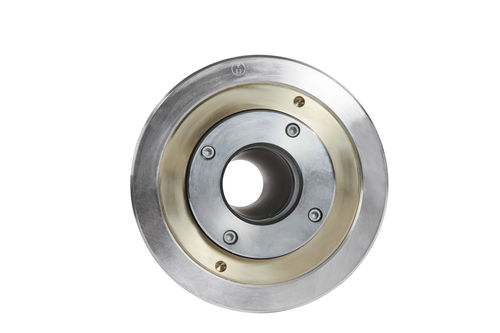

•Piston rods with through holes
•Optional mounting holes in the cylinder base

Parameter Name	Parameter Value
Type	hydraulic
Configuration	double-acting
Applications	for lifting
Other characteristics	hollow-plunger lightweight
Stroke (mm)	200 - 200
Force (N)	377 - 632
Pressure	500 bar (7,251.9 psi)
