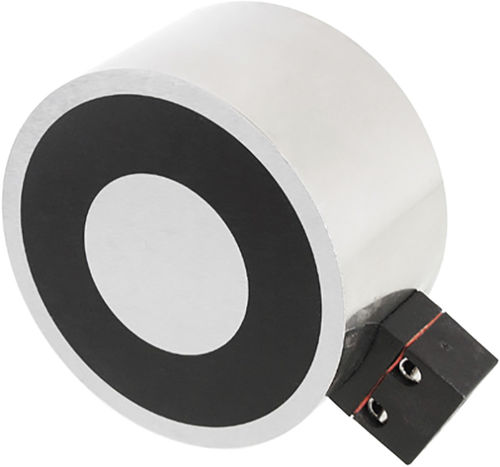

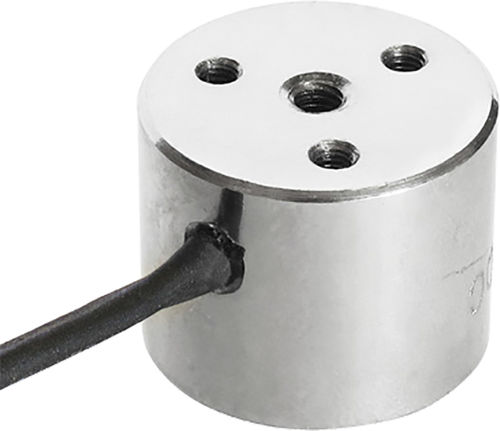

These electric adhesive magnets are used for specific and electrically controllable holding / loosening of loads in manipulating and conveying equipment.
The adhesive magnets are available in 2 versions:

- Holding (H): Electric adhesive magnets that start magnetising and work holding only when energy is fed.

- Loosening (L): For tis purpose, permanent adhesive magnets are used that release workpieces only when energy is fed.


Applications

- For holding & loosening of ferromagnetic work pieces
- In production, fixture and special-purpose machine building as well as automation and safety technology
- For fully and semi-automatic manipulating and conveying equipment


Features

- The holding force obtainable with low voltage 12V & 24V d.c or 240V a.c.
- depends on both material thickness and surface finish (air gap).
- Compact design

Parameter Name	Parameter Value
Type	holding
Other characteristics	compact for automation
Voltage (V)	12 - 24
Force (N)	113 - 1677
