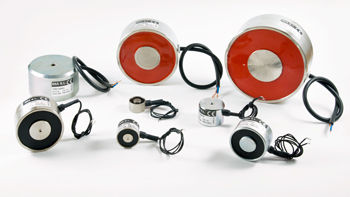

The attraction and holding of ferromagnetic objects is effected by passing an electric current through the coil of the electromagnet. When the power current is disconnected, the object held is released. When working with suspended loads safety standards must be respected.

Features:

Degree of protection IP65
Thermal Class B (130)
Rated voltage 24V DC
Normalised Duty cycle: ED 100%. For other voltages, ED or sizes, please consult us.

Such electromagnets must be activated only in contact with the metal object to be held.
They are intended for intensive operation without limit of movements and in permanent service. Their main benefit is a strong holding force with moderate power consumption.

Coils standardized 24 VDC
ED. 100% continuous operation.

Standard terminals included free-of-charge, for all sizes.

Supply possibilities on request:

With connection cables. (Standard model)
With connector, from the IMAVEM50 model upwards. (Optional) – The connector has 4 options for positioning (4 × 90º) and is not suitable for alternating current (AC) voltage.



The following table gives the holding force values (Fm) according to the air gap (.DELTA.L) and measured under the following conditions:

Dc supply (DC).
Flat holding piece (3μ roughness) in AºSt37, the thickness of which is indicated in the table and dimensions to be greater than the magnetic face of the electromagnet.
35 ° C ambient temperature.
Coil stabilized at its working temperature.

Parameter Name	Parameter Value
Type	holding
Other characteristics	power
Voltage (V)	24 - 24
