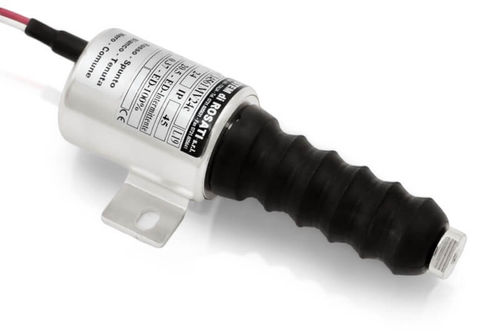

Linear electromagnet type 456 with single or double coil, for high precision movements, offering a high pulling force, both in traction and thrust. Industrial diesel engines and motion sector in general.

Power supply = 12 – 24Vdc – other

Traction/thrust

Type I456 single coil
ED% duty = intermittent
Type C456 and CI456 double coil:
– pull coil – ED% duty = intermittent
– hold coil – ED% duty = 100
Pull coil disconnected by external switch for type C456
Pull coil disconnected by internal switch for type CI456
High pulling and holding forces
Max. stroke = 26 mm
Dimensions (diameter) = 45
EXTERNAL SWITCH TO BE APPLIED SSR70-5 and/or SSR70-6

CUSTOMISED VERSIONS AVAILABLE

Parameter Name	Parameter Value
Type	holding linear
Other characteristics	double-coil single-coil for diesel engines
Voltage (V)	12 - 24
Stroke (mm)	0 - 26
