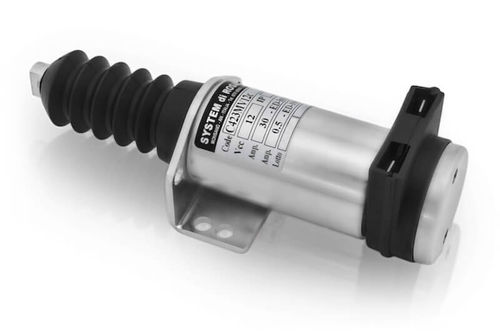

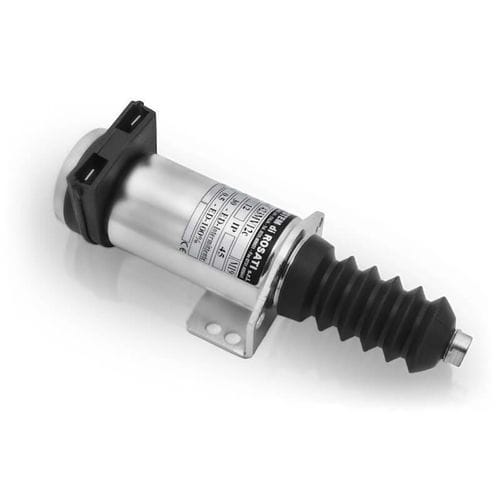

Linear electromagnet type 42 with single or double coil, for high precision movements, offering a high pulling force, both in traction and thrust. Industrial diesel engines and motion sector in general.

Power supply = 12 – 24Vdc – other
Traction/thrust
Type I42 single coil
ED% duty = intermittent
Type C42 and CI42 double coil:
– pull coil – ED% duty = intermittent
– hold coil – ED% duty = 100
Pull coil disconnected by internal switch for type C42
Pull coil disconnected by external switch for type CI42
High pulling and holding forces
Max. stroke = 30 mm
Dimensions (diameter) = 42
EXTERNAL SWITCH TO BE APPLIED SSR70-5 and/or SSR70-6

CUSTOMISED VERSIONS AVAILABLE

Parameter Name	Parameter Value
Type	holding linear
Other characteristics	double-coil single-coil for diesel engines
Voltage (V)	12 - 24
Stroke (mm)	0 - 30
