13Logic engine features 1MB of application memory with a 0.02mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.

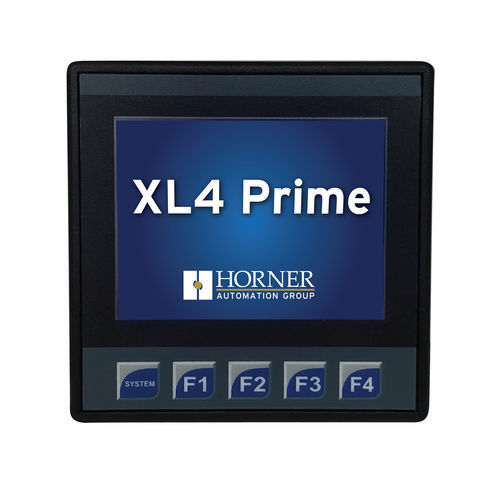

Operator Interface features include a 320×240 LCD TFT color graphics display with a high resolution resistive touchscreen, 4 function keys and a system key

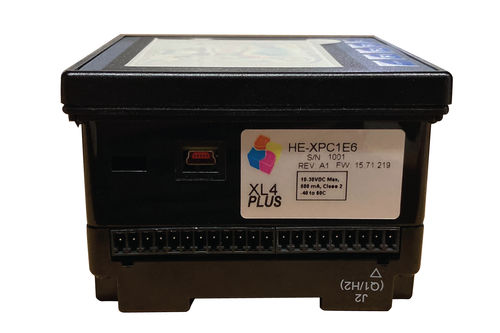

A USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
A USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
One (1) RS-232 and one (1) 485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.

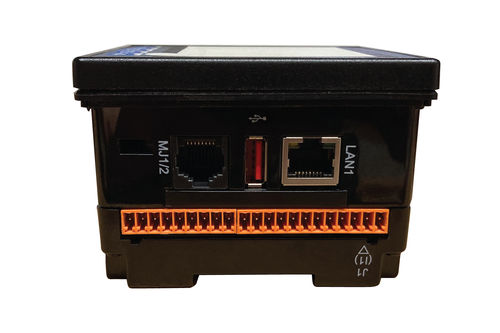

Networking features include a built-in 10/100 Ethernet port, and an integrated CsCAN port.

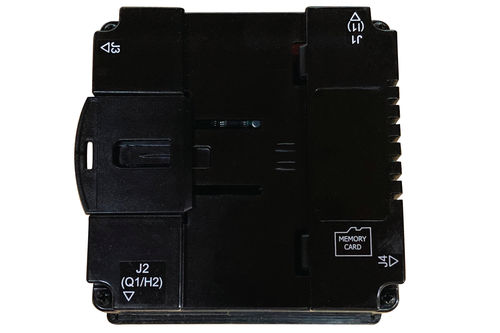

All units feature a microSD slot, supporting at least 32GB.

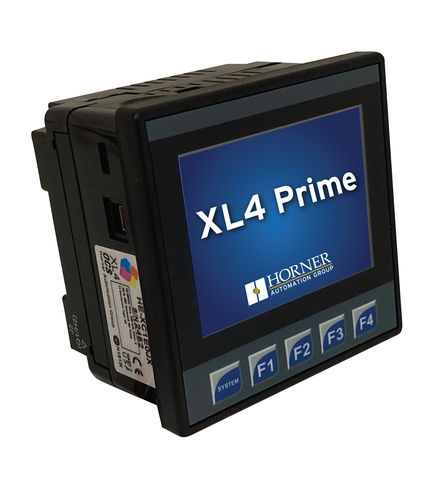

The XL4 Prime is in the same ¼ DIN form factor as our extremely popular XLE and XLT. XL4 Prime has a full colour LCD TFT Display with QVGA resolution. XL4 Prime comes fully equipped with 100Mbps Ethernet built into every model. No additional Ethernet add-ons or accessories are needed. The XL4 Prime Ethernet support includes an integrated Web Server, FTP Host, Email, Modbus/TCP Master/Slave, Programming and more.

The XL4 Prime includes both a USB Host port and a USB On-the-go Port – each at USB 2.0 speeds (480Mbps). The Host Port allows connection of removable FLASH drives, supporting drives up to 2TB. The On-the-go Port provides the fastest communications interface for Programme Change on Line (Online Change). XL4 Prime I/O expansion is not limited to its Built-in I/O.

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	320 x 240
Processor	Intel® Celeron J1900
Other characteristics	TFT LCD Ethernet USB RS232 RS422/RS485 Modbus CAN bus IP65
Applications	CAN bus
