SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.

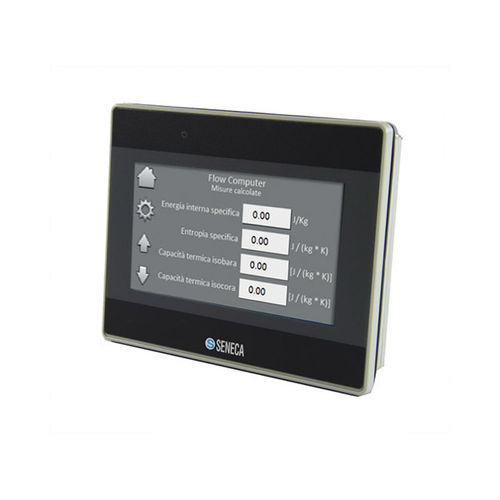

VISUAL3 is a 4.3" HMI equipped with a powerful 600 Mhz Cortex A8 CPU, 128 MB di RAM, high quality display LED backlights with a 480x272 pixel resolution, 2 serial ports (Nr. 1 RS232 e Nr. 1 RS232/RS485) and one Ethernet port 10/100 BaseT.
Thanks to its USB 2.0 port (host) at the bottom of the panel you can easily transfer data. 128 MB of flash capacity permits you to download projects up to 16 MB and logs/sample datas up to 48 MB.

Power consuption: - 300 mA @ 24 Vdc
Connections: - Nr. 1 USB Host 2.0 port
Nr. 1 RS232 port
Nr. 1 RS232/RS485 port
Nr. 1 Ethernet 10/100BaseT port
Operating temperature: - 0..+50°C
Protection degree: - NEMA4 / IP65
CPU: - 32 bit RISC cortex A8 600 MHz
Flash memory: - 128 MB
RAM: - 128 MB
RTC: - built-in
Dimensions (WxHxD): - 128x102x32 mm
Weight: - 250 g
Standard: - CE

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	480 x 272
Processor	RISC ARM Cortex-A8
Other characteristics	TFT LCD Ethernet USB RS232
Applications	industrial display
