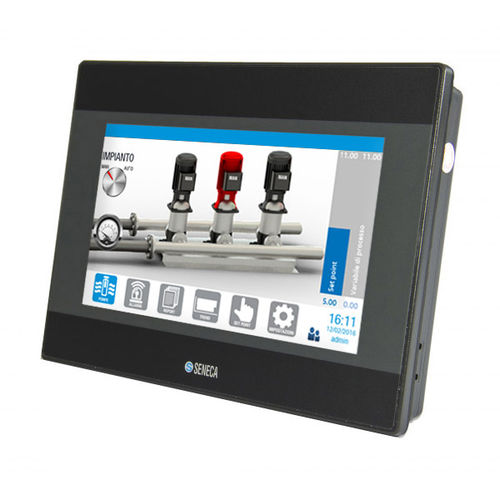

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL2 is a 7" HMI equipped with a powerful Cortex A8 600MHz CPU, 128 MB of RAM, 1 ethernet port, high quality display LED backlights with a 800x480 pixel resolution and 2 serial ports (Nr. 1 RS232 and Nr. 1 RS485).

Power consuption: - 500 mA @ 24 Vdc
Connections: - Nr. 1 USB Host 1.1 port
Nr. 1 10/100 Ethernet port
Nr. 1 RS232 port
Nr. 1 RS485 port
Operating temperature: - 0..+50°C
Protection degree: - NEMA4 / IP65
CPU: - Cortex A8 600MHz
Flash memory: - 128 MB
RAM: - 128 MB
RTC: - built-in
Dimensions (WxHxD): - 200,4x146,5x34 mm
Weight: - 520 g
Standard: - CE



PARAMETERS

Parameter Name Parameter Value
Interface
with touch screen
Mounting
panel-mount
Resolution
800 x 480
Processor
ARM Cortex-A8
Other characteristics
  • TFT LCD
  • Ethernet
  • USB
  • RS232
  • RS422/RS485
Applications
  • industrial
  • display
