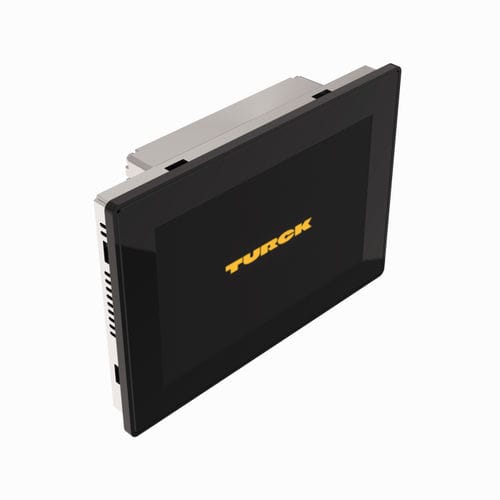

TX700 HMI/PLC Series

10” Display - CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing and Glass Front with a Capacitive Touch

10" TFT wide screen color display
LED backlight
1280 x 800 pixel resolution
16 M colors
Capacitive touchscreen with glass front
1 RJ45 Ethernet port with 10/100/1000 Mbit
2 RJ45 Ethernet ports with 10/100 Mbit
1 serial interface (RS232, RS485, RS422)
2 USB host ports
1 SD card slot

Technical Data
Product series - TX700
Device type - Cloud Gateway, Industrial Control
Protection class - IP66 front, IP20 rear
Interface - RS232, RS485, 3 × RJ45
Radio interface - Optional erweiterbar
Fieldbus master - PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave - Modbus TCP, Modbus RTU
Programming - CODESYS V3

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	1280 x 800
Other characteristics	Ethernet USB RS232 Modbus CANopen Ethernet/IP IP66
Applications	display industrial PLC
