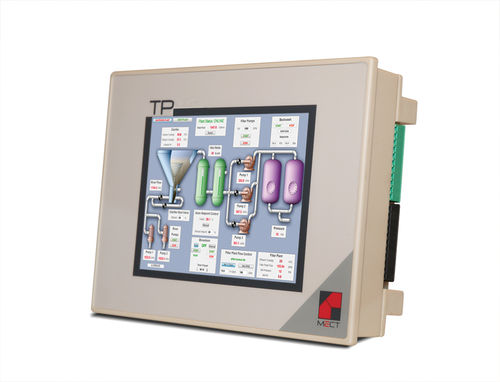

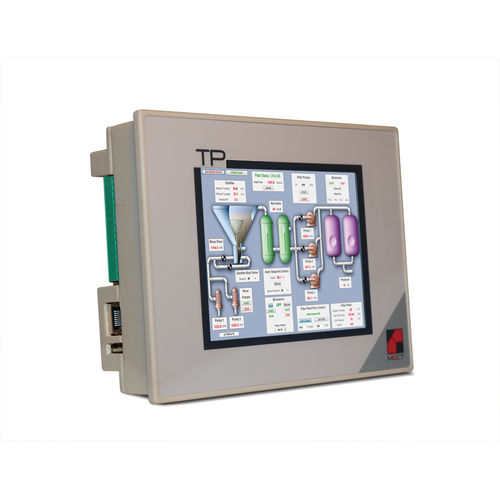

The operator panel TP1057 can also interface to a PLC without monitor via Modbus RTU protocol on RS485 or via CAN port. The Ethernet interface allows remote management of the device and the USB host port allows the TP1057 to update the software directly on site without the use of a PC.
SOFTWARE
To configure your PLC operator panel TP1057 is available the "MECT SUITE" software.
"MECT SUITE" contains the software to configure the system and to create the PLC and HMI graphics applications:
Qt Creator:
Generate graphics HMI application (graphics pages);
Generation and definition of the system variables;
Configuration of the communication parameters;
Operator Panel preliminary setting;
Easy insertion of elements associated to PLC variables;
Prepakaged pages for recording / logging;
Use, if necessary, Qt / C++ code;
HMI application debug.
ATCMControl:
Generation PLC application (in 5 IEC 61131-3 languages);
PLC application debug.
VERTICAL VERSION AVAILABLE.

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	320 x 240
Processor	VIA
Other characteristics	USB Ethernet Modbus RS422/RS485
Applications	PLC operator interface
