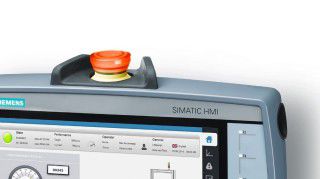

When it comes to high-end mobile applications, opt for mobile panels. These are also for fail-safe machines and widely distributed plants. SIMATIC HMI Mobile Panels 2nd generation transfer the functionality and performance of SIMATIC HMI Comfort Panels to mobile control units. Users benefit from more flexibility and convenience.

Advanced benefits for mobile applications
Detailed presentation of complex pictures of process due to brilliant, stepless dimmable widescreen displays with 4“, 7‘‘ or 9‘‘ and 16 million colors

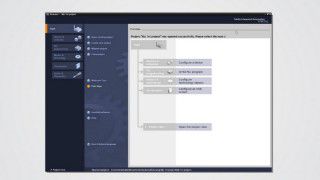

Efficient engineering for all HMI tasks, even with your own individual design

Flexible in use and evaluation of security method: evaluation per software (PROFIsafe) or classic via wiring

Economically priced connection possibilities for small machines with minor spot offers

More transparency on site

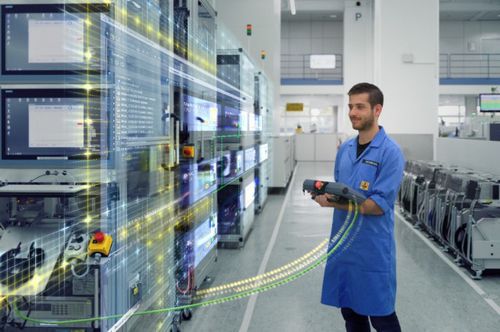

Even for larger production facilities, complex or enclosed machines, long materials handling or production lines and conveyor systems, mobile operator panels allow fast and precise setting up and positioning during commissioning. They also ensure shorter downtimes during retooling, maintenance or repairs.

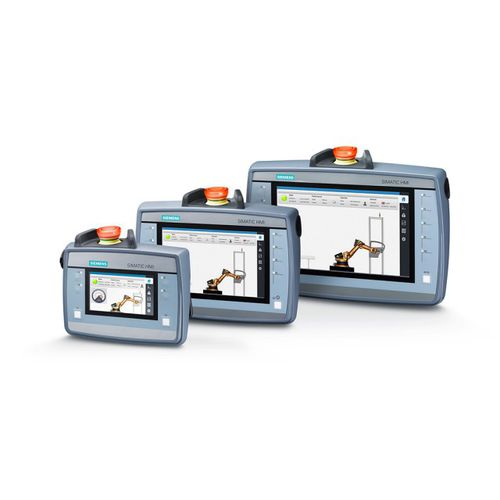

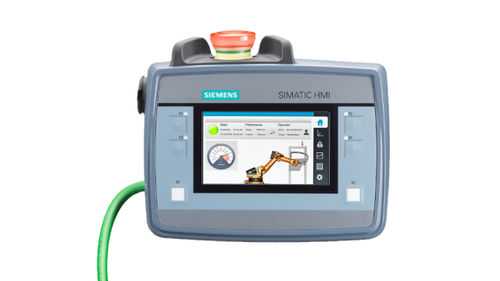

Available with either a 4, 7 or 9 inch display and wired PROFINET connection, SIMATIC HMI Mobile Panels 2nd generation transfer the functionality and performance of SIMATIC HMI Comfort Panels to mobile control units. Users benefit from more flexibility and convenience. Featuring16:9 aspect ratios and 16 million colors, the brilliant widescreen display provides clear, detail-rich visualizations, even of complex process and plant images.

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	mobile
Resolution	800 x 480 480 x 272
Processor	2nd generation Intel® Core™
Other characteristics	widescreen USB 1 x RJ45 IP65
Applications	industrial control
Screen size (mm)	7 - 7
