About

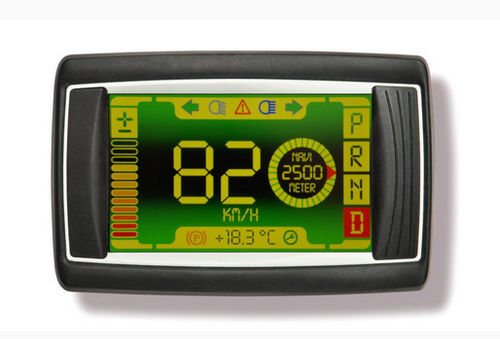

The OPUS A6e is the first choice for complex HMI (Human Interface) which rely on the processing of a wide range of information. This unit features a bright, high-resolution display with a great picture – and therefore offers complete ease of use under all operating conditions. With an optimised size of 7” and a 800 x 480 pixel resolution, everything the operator needs is perfectly readable. The large 2 GB or optional 4 GB of memory, combined with the 32-bit, 800 MHz processor, is ideally suited to demanding applications. The device can be orientated either horizontally or vertically and we can supply it in either standalone or dashboard options.
Integrated Camera Input

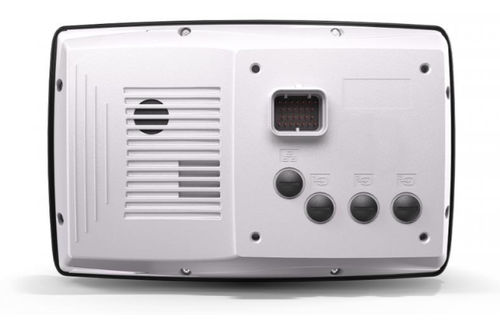

A built-in camera input allows you to easily connect an OPUS camera. Further features of the OPUS A6e are two CANbus ports and four configurable inputs either analog or digital. The OPUS A6e can also be fitted with two additional camera inputs as optional extras.
Technical Data
HOUSING
Orientation landscape or portrait
W223 x H139 x D57,5 mm
excl. connector and cables
MEMORY
512 MB DDR2 RAM
4 GB NAND flash
POWER SUPPLY
9 ... 36 V DC
PROGRAMMING ENVIRONMENT
OPUS Projektor
Codesys-Tools (3.X)
ISO-VT
C/C++
Contrast ratio 600:1
USER INTERFACE
Touchscreen
OPERATING SYSTEM
Linux Kernel 3.0.0 or higher
SUPPORTED PROTOCOLS
CANopen®
CANfreestyle
J1939
SIGNALS
Light sensor
Multicolor-LED
3 Status-LED´s
Speaker, approx. 80 dB(A)
REAL TIME CLOCK
Buffered by gold cap
CERTIFICATES
CE mark
E1 Type approval
PROCESSOR
32-bit, 800 MHz
Freescale® I.MX6™
VIDEO
Inputs: 3x analog
Vss: 1 V
Camera supply: 12 VDC
Max. current: 500 mA
Output: 1x camera control output, Ampacity: 300 mA
ENVIRONMENTAL CONDITIONS
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
with touch screen
|
| Mounting |
panel-mount
|
| Resolution |
800 x 480
|
| Processor |
NXP i.MX35
|
| Other characteristics |
|
| Applications |
|
