General Info.

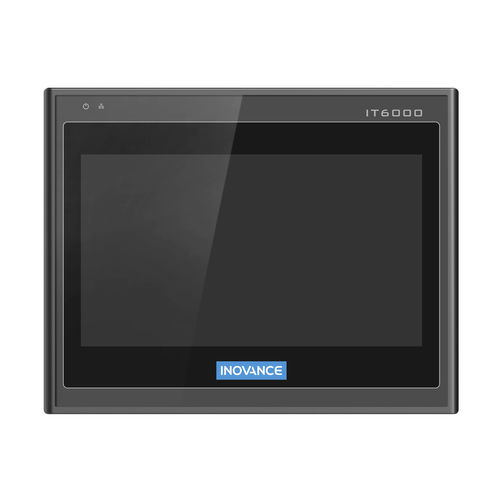

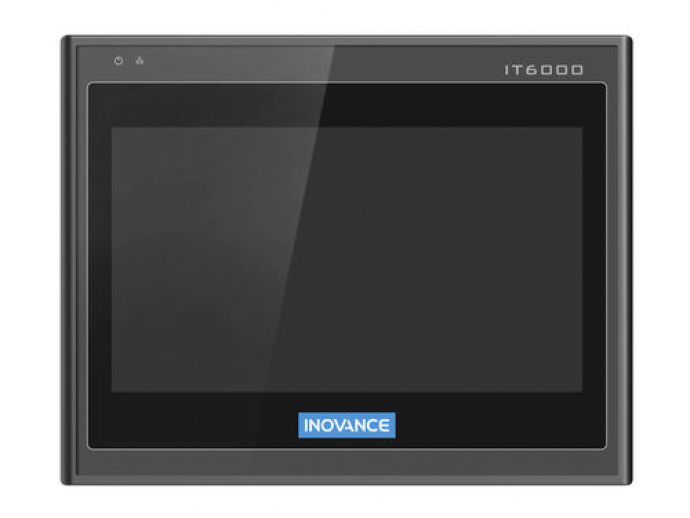

Smart, high performance HMI

• Three available model sizes: 4.3”, 7.0” and 10.1”
• 24-bit true color fidelity display
• Alarm bar/alarm list and event list
• Macro for flexible implementation of complex functions
• Recipe data import and export
• Data sampling
• Trend chart display
• Up to eight different languages in text library (including Chinese, English, Korean, Russian and Thai)
• Three serial ports and 1 Ethernet port
• USB device port allows firmware and program or history data to be downloaded/uploaded to/from a PC
• USB host port for access to UDISK or use of a mouse, keyboard or printer
• Pass-through function allows HMI to act as an intermediary connecting a PC with a PLC to facilitate debugging
• Communications options:
• Ethernet (MODBUS-TCP)
• RS485/RS422/RS232 (MODBUS-RTU)
• In-built communications protocols support third-party PLCs
• High security: 12 passwords, 12 users, 6 levels of authority
• InoTouch editor functions:
• Extensive gallery/icons
• Offline & online simulation

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Other characteristics	Ethernet USB RS232 RS422/RS485 Modbus
Applications	display data PLC
Screen size (mm)	7 - 7
