The PLC / CNC / HMI line TOP series is a true revolution in the concept of automation, incorporating the robustness and reliability of industrial PLC/CNC and the potential of interconnectivity and interfacing of PC operating systems.

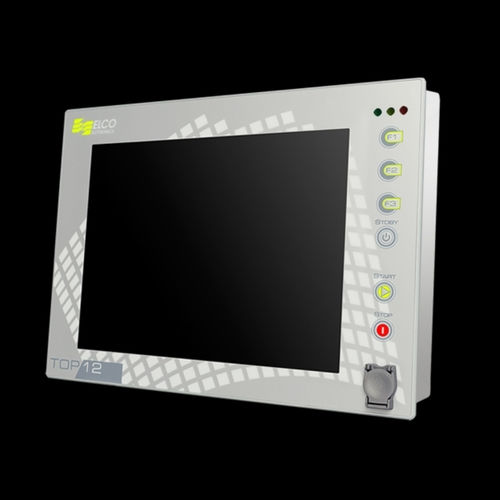

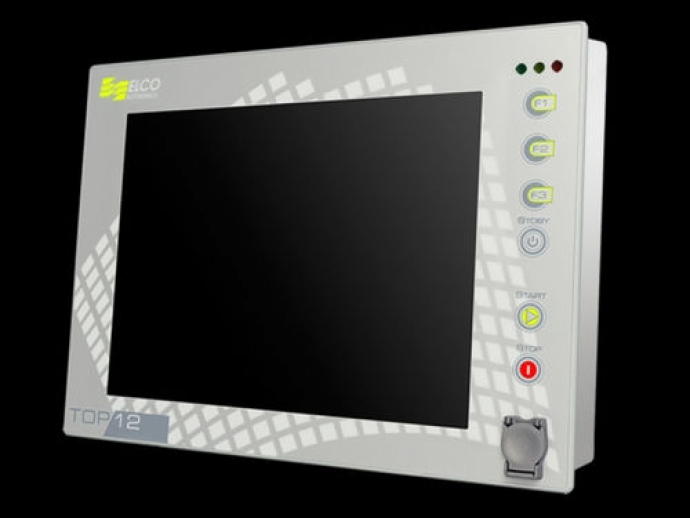

The integrated PLC / CNC / HMI TOP 12 is a modular, programmable and configuarble PLC. The system consists of 5 slots for inserting I/O cards and is based on a sophisticated communication bus that automatically recognises each inserted card, thereby addressing the available resources.

> Modularity: 5 slots available and multiple combination possibilities
> Autodetecting Mode: automatic recognition of cards
> Remote assistance: remote control with VNC server
> 24v power supply I A
> 6-key mechanical keyboard
> Industrial touchscreen resistive technology
> Polyester silk screen for industrial environments
> Ladder / ISO programming through serial / ethernet / USB port
> Clock / Dater
> 2-port CANOPEN fieldbus - 2 MODBUS ports (optional)
> Front USB port (1 USB on the back optional)
> Ethernet 1 Ethernet 10/100 Base - T port
> Fiber Optic 2 ports TX / Rx (optional)
> Extractable screw connectors (or optional spring-loaded)
> Front H: 250 mm / L: 340
> Depth D: 69 mm

INSTALLABLE CARDS

EC7DIO_021 digital I / O card configured with:
- 16 digital inputs PNP 24 VDC
- 16 digital outputs PNP 24 VDC max 1 A

EC7AS_031 Axis Board configured with:
- 2 encoder inputs NPN / PUSH PULL / LINE DRIVER 5-24V
- 2 analog outputs +/- 10V 16 bit
- 2 STEP / DIR 5V LD outputs

Parameter Name	Parameter Value
Interface	with keyboard
Mounting	panel-mount
Other characteristics	programmable modular Ethernet USB Modbus CANopen
Applications	display industrial PLC CNC remote control
