About

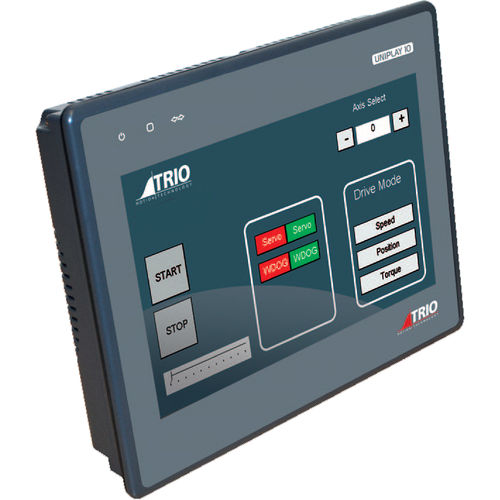

Trios unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" and 10" colour display.
HMI
Single point HMI programming inside Motion Perfect v4
Centralised program / HMI screen storage in Motion Perfect v4 project

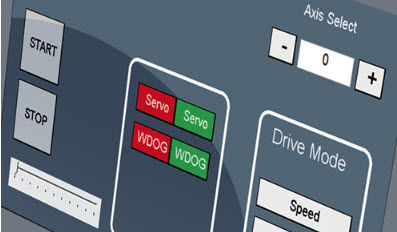

Easily display any controller data type + graphics
No need to separately program HMI panel
7" and 10" UNIPLAY sealed touch panels available

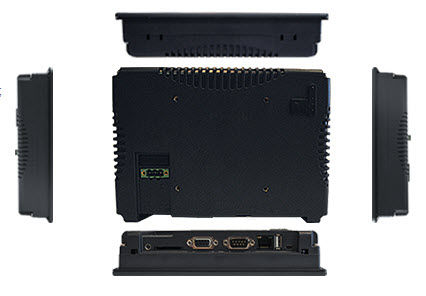

Ethernet connection reduces wiring
The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments.
No additional software is required; Uniplay HMIs work with the Trio 4xx Motion Coordinator range. Motion Perfect v3 is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
with touch screen
|
| Mounting |
embedded
|
| Other characteristics |
Ethernet
|
| Applications |
display
|
| Screen size (mm) |
10 - 10
|
