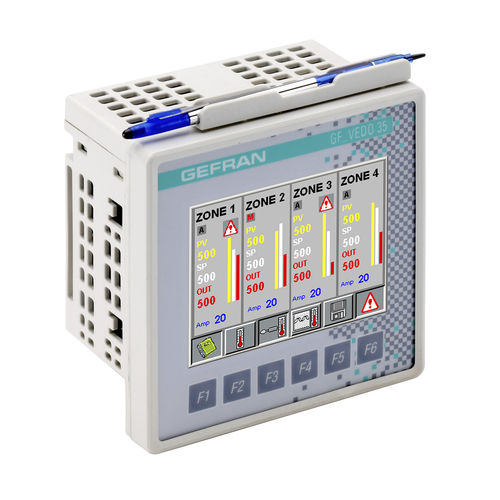

The integrated Controller and Operator Panel allows the complete management of automation. Available in 3 versions (6 models), and equipped with a powerful 400 MHz processor.

It is destined mainly to operate in an industrial environment on the control panels of production process machines or processes.

The operator interacts through a colour touch screen. Depending on the model, the size of the screen is 3.5” or 7” wide.

As an option, the device can be equipped with programmable function buttons.

Thanks to its numerous communication ports (some of which are optional), it is possible to connect a wide range of devices to the controller, such as computers, barcode readers, USB sticks, modems, printers, etc., and connect it to an Ethernet network.

The remote input and output modules (CAN-IO/GILOGIK II) are connected by bus to the CAN port (CANopen).

Other CANopen standard compliant devices can also be connected to the bus.

-PLC + HMI in one product
-Integrated Ethernet port
-Wide availability of communication ports
-A single programming environment

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	320 x 240
Processor	VIA
Other characteristics	TFT LCD programmable Ethernet USB CANopen IP65
Applications	PLC
Screen size (mm)	7 - 7
