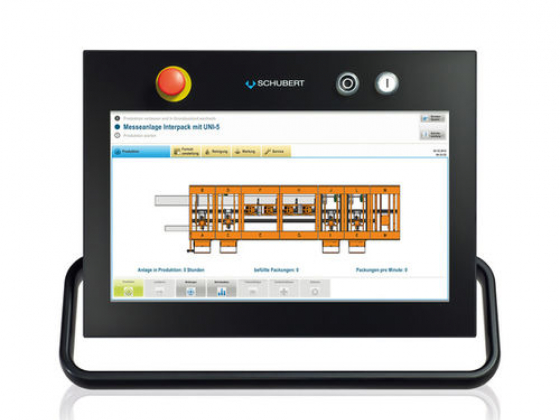

Wide range of high quality Human Machine Interface panels for use with the integrated servo and stepper motors from JVL.

JVL now provide a wide range of excellent HMI operator panels for all our integrated motors.
Available screen sizes from 4,3" to 15" with resolutions up to 1024 x 768.
Enjoy easy creation of operator screens using the EV5000 development software package for Windows.

Highlights:
• Connects to all controller versions of MIS231..234
• Connects to all MAC050..141
• Connects to all MAC400 and MAC800
• Easy and intuitive development software
• All functions that you would ever need, including trend graphs, alarms and recipe handling
• Advanced Timer functions let you mask out individual bits in MAC/MIS/SMC75 registers
• Need very special functionality? Just write a macro in C !
• Ultra fast boot times reduce waiting time after power on. Good connectivity, even the smallest panels have 2 serial ports and an USB-port

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	1024 x 768
Applications	control machine
Screen size (mm)	4.3 - 15
