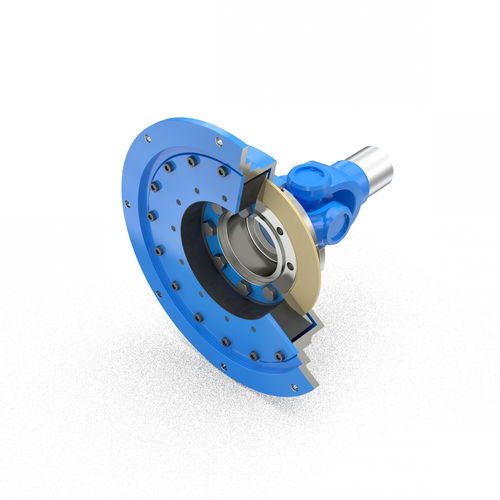

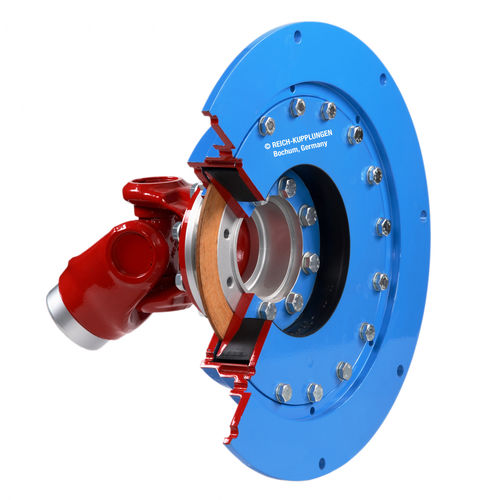

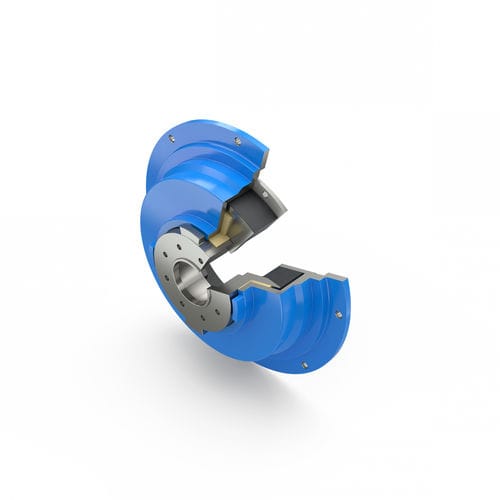

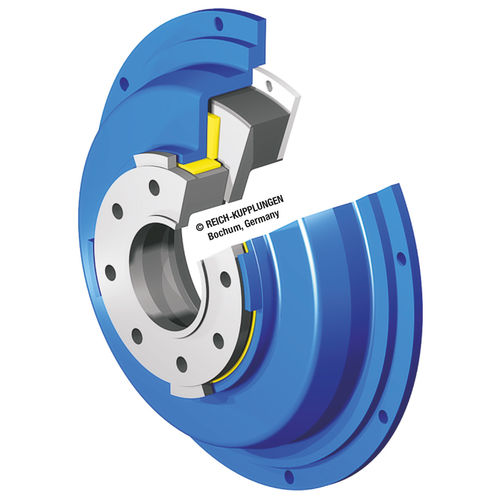

Highly torsionally flexible coupling ARCUSAFLEX-VSK for drive shafts
* Linear torsional deflection characteristic
* Elements available in different torsional stiffnesses
* Enhanced damping capacity through frictional damping
* Maintenance-free coupling bearings
* Radial bearing close to the cardan joint
* A variety of designs for different cardan shaft configurations
* Many types with SAE connection dimensions or as specified
* Compact construction, the highly flexible element being protected by the housing
* Fail-safe device visible from the outside for ease of inspection
ARCUSAFLEX-VSK
General technical description
Drive shafts are used in a drive train when a large shaft displacement or an extended distance between the drive and the driven components must be compensated. Depending on the arrangement of the drive train components, a non-uniform motion of the speed may result, and since drive shafts exhibit some torsional flexibility, the mass of the prime mover and driven machine may induce a resonant system.
If the prime mover is an internal combustion engine, a highly flexible ARCUSAFLEX-VSK U-joint coupling (short form: AC-VSK) is required to protect the drive train from dynamic overload. Highly flexible AC-VSK U-joint couplings are capable of shifting resonant ranges below the lowest operating speed and of reducing resonance-induced vibratory torques under reversed stresses to tolerable levels.

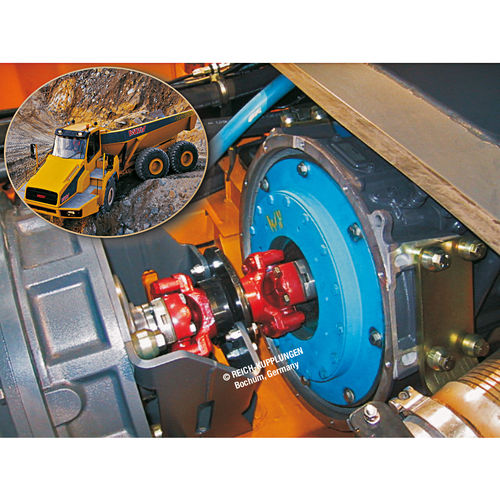

The highly flexible AC-VSK U-joint coupling is mounted on the engine flywheel, ahead of the drive train with drive shaft. The AC-VSK U-joint coupling has an axial and radial integral bearing to accommodate the weight of the drive shaft and its reaction forces.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
flexible
|
| Product applications |
|
| Other characteristics |
|
| Installation system |
flange
|
| Torque (Nm) |
|
| Rotational speed (rpm) |
2100 - 4500
|
