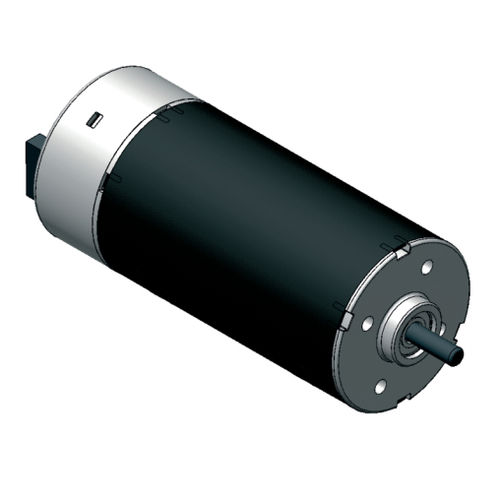

High Torque BLDC Motor with Controller

Highlights:
■ Excellent Torque per Weight (Power Density)
■ Full Speed Range Operation (0 to idle Speed)
■ Speed and Torque Control

High torque Brushless DC Motor with controller

Product highlights
Typical Applications
Automotive, Medical, Power tools, Robotics, Automation
Small and Strong
Torque Overboost: 440 mNm
Small Size: 029.2 x 65.7 mm, Low Weight: 160 g
Innovative
Plug&Play: Motor with Integrated Controller, LIN Communication Robust
No Maintenance, Long Lifetime, Efficient Heat Dissipation Benefit
Excellent Torque per Weight (Power Density), Full Speed Range Operation (0 to idle Speed), Speed and Torque Control

Technical Data
Motor Type: Brushless DC Inrunner Motor
Dimensions: 029.2 x 65.7 mm
Weight: 160 g
Voltage Range: 9 - 16 V
Max. Current: 30 A
Température Range: -40° - +85°C
No Load Speed (at 20°C and 10 V): 4400 rpm
Torque (at 20°C and 10 V): 440 mNm
Efficiency (at 20°C and 10 V): 80 %

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Configuration	small
Other characteristics	high-torque high-speed with integrated controller
Power (W)	350 - 350
Torque (Nm)	0.44 - 0.44
Rotational speed (rpm)	4400 - 4400
Diameter (mm)	29.2 - 29.2
