HIGH-SPEED DEWE3-A4 FOR MOBILE DATA ACQUISITION

The DEWE3-A4 DAQ system is the best solution for portable all-in-one data acquisition. The four TRION(3) slots for up to 32 analog measurement inputs and the 1 TB data SSD, in combination with the intuitive OXYGEN measurement software, make it universally and flexibly applicable. Whether field measurements, in the vehicle, or on the test bench – the measurement possibilities with this compact and rugged system are limitless.

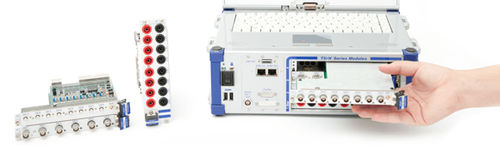

•Up to 32 analog inputs (via exchangeable TRION(3) modules)
•Digital inputs, counter and CAN integrated
•Up to 10 MS/s simultaneous sampling rate
•Comprehensive SYNC options
•Isolated DC power supply & optional battery pack
•Optional internal UPS buffer battery for <5 min
•13.3” wide-screen multi-touch full HD display
•1 TB Solid State Disk, 400 MB/s

CHASSIS CONTROLLER FOR MORE FLEXIBILITY
The Chassis Controller upgrade brings enormous space and cost savings. The Chassis Controller offers functionalities that previously required up to three separate TRION modules: TRION-BASE, TRION-CAN and TRION-TIMING.

Now the connectors for counter, CAN, GPS, PTP, IRIG, PPS and digital inputs and outputs are built directly into the housing. This leaves these TRION slots now free for the use of other analog or digital TRION(3) modules.

Parameter Name	Parameter Value
Mounting	benchtop portable mobile
Applications	for mobile applications simultaneous sampling
Options and accessories	high-speed analog input rugged all-in-one
