High-speed data acquisition system 8460

High-speed data acquisition system 8460

High-speed data acquisition system 8460

About

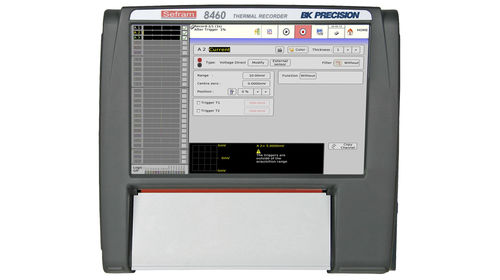

The 8460 high speed, configurable data acquisition system combines a fast sampling rate, deep memory, a thermal printer, and a large touchscreen display. Internal software tools are also provided like the power analysis application and a function editor for complex mathematical calculations on multiple channels.

The built-in printer provides a permanent record of the data with date and time stamp. The printer operates in four modes. The fastest is direct mode, which prints to paper only, mixed-mode prints to paper while saving the data to internal memory. External control mode starts and stops the printing with a logic signal, and transcription mode prints data previously stored in memory.

These recorders feature a 1 µs sampling rate on up to 6 channels simultaneously while the 500 GB internal memory allows for recording over long periods. Data is acquired from 4 measurement board types which include universal input, multiplexed, strain gauge, and high voltage.

Choose any combination of 3 boards for applications ranging from small sensor signal logging to electrical power analysis.

Fast sampling rate: up to 1 MSa/s (1 μs) on each channel
Up to 72 channels (with multiplexed board)
4 measurement board types; Universal, Multiplexed, Strain Gauge, High Voltage
Measure up to 1000 VAC with high voltage board
Temperature measurements supporting thermocouples and Pt100/Pt200/Pt500/Pt1000 sensors
GPS and IRIG timing options
16-bit resolution with multiplexed and strain gauge boards
14-bit resolution with universal and high voltage boards
500 GB SSD internal memory (2 TB optional)
270 mm thermal printer
16 logic input channels



PARAMETERS

Parameter Name Parameter Value
Measured physical value
voltage
Mounting
benchtop
Options and accessories
  • high-speed
  • with printer
