Fast acquisition module with universal synchronized inputs and embedded webserver software
FD systems are a series of fast (470 Hz/channel) and flexible data acquisition modules available in 3 models of 5 / 10 / 15 universal synchronized inputs.

• Process: Voltage, current, resistance, frequency
• Temperature: Thermocouples, resistive probes, thermistors
• Analogue inputs, calculation channels

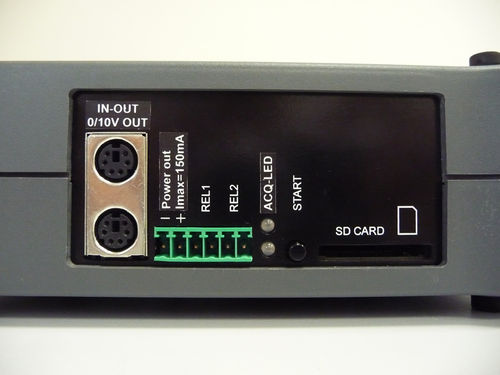

• Analogue outputs, relays, TTL inputs/outputs, 24 VDC output to supply sensors

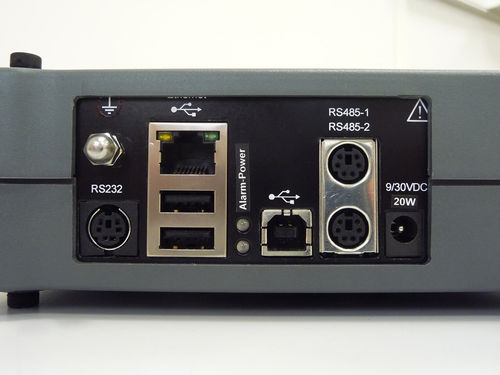

• Communication: Ethernet TCP/IP, USB, WIFI (external access point in option)

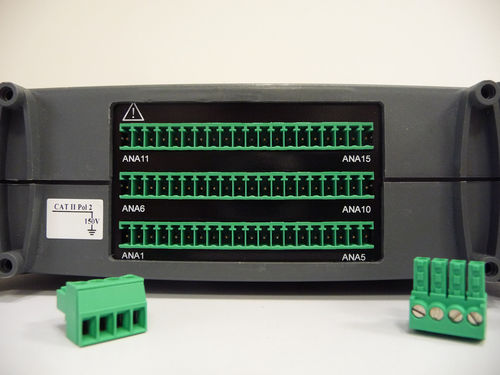

FD systems are a series of fast (470 Hz / channel) and flexible data acquisition modules to be used in the field and on test benches. 3 different models are available with 5, 10 or 15 universal synchronized inputs (1 ADC per channel).
All necessary configuration and management software (WEB server technology) are embedded into the plug-and-play system and allow remote control of the acquisition through any web browser: Setup, start, result display, monitoring and data exportation. FD memory capacity (internal and external via USB drive or SD card), allows several months of data to be recorded.
FD modules perform measurement, monitoring and recording of analogue and digital signals coming from sensors of physical or electrical values. These signals can be:

• Voltage: Standard 0-100 V
• Current: 0-20 and 4-20 mA with external shunts
• Thermocouples: Type K/T/J/N/E/R/S/B… with or without cold junction compensation
• Resistance: 0-3000 Ω and 0-200 kΩ
• RTD: Temperature sensors (Pt100 / 500 / 1000…) in 2, 3 or 4 wires
• Frequency: up to 10 kHz measuring frequency and counting

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Number of channels	multi-channel
Mounting	benchtop
Options and accessories	USB Ethernet high-speed resistance
