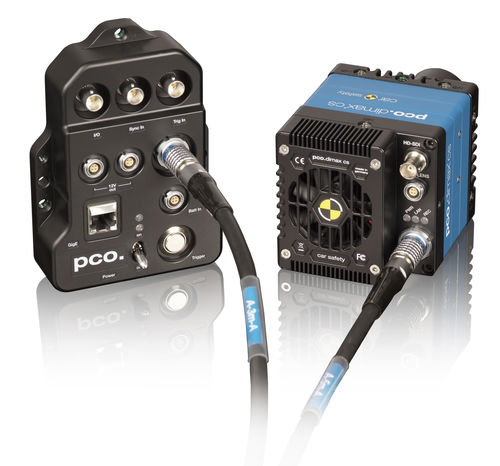

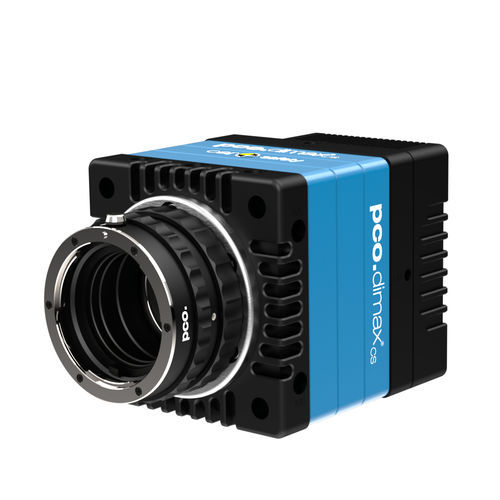

The pco.dimax cs1 camera provides excellent light sensitivity and outstanding image quality ideal for precise analysis and measurements. This high-speed camera offers fast frame rates of up to 3086 fps at a high resolution of 1296 x 1024 pixels. Featuring intuitive control software, the pco.dimax cs1 enables easy playback and export of recorded slow motion video sequences. Its multiple lens mounts (including electronic lens control), HD-SDI video output and automatic image calibration make the pco.dimax cs1 camera a versatile and powerful solution for demanding car safety applications.

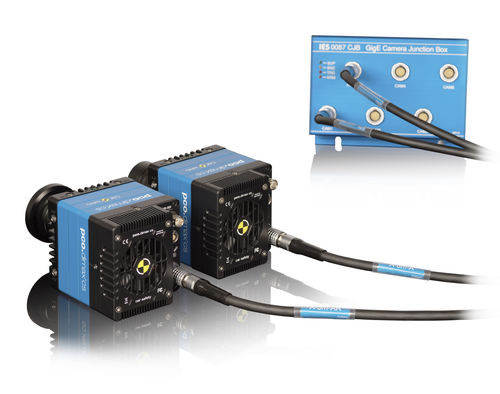

The pco.dimax cs high-speed camera series are specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. With a compact, lightweight and ruggedized design, the pco.dimax cs cameras can be mounted in a multitude of positions for both onboard or off-board use.

Resolution
1296 x 1024 pixels

Pixel size
11.0 x 11.0µm

Peak quantum efficiency
50

Dynamic range A/D
12 bit

Readout noise
22 e- rms

Frame rate
3086 fps

Exposure time range
1.5 µs - 40 ms

Region of interest (ROI)
24 x 4 pixels (centered)

Optical input
F-mount, C-mount

Data interface
GigE

Parameter Name	Parameter Value
Applications	for car safety
Technology	digital
Function	spark optical emission safety
Spectrum	full-color, monochrome
Sensor	CMOS
Interface	GigE USB Camera Link
Resolution level	HD
Other characteristics	high-speed lightweight board compact
