High-performance servo-drive SCA06

High-performance servo-drive SCA06

High-performance servo-drive SCA06

About


Technology
The SCA06 servo-converters have operating interface with 6-digit LED display to control, set and view all the parameters. In addition, they offer excellent cost effectiveness, with SoftPLC function, positioning blocks, free programming software and CANopen communication included in the standard version, being suitable for many different applications.

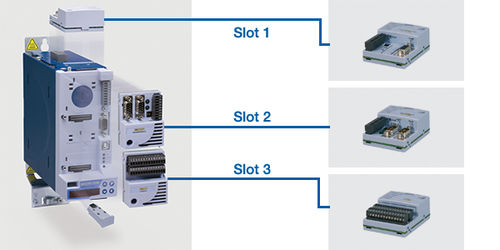

Function Plug & Play
Through of Plug & Play concept has 3 slots for accessories, which allows easy and quickly installation.

Characteristics
• Power supply 220-230 V ac / 380-480 V ac
• High performance
• Precision of motion control
• Operation in closed loop
• Position feedback by resolver
• Independent control and power supply
• Flexibility and integration to drive
• Easy operation

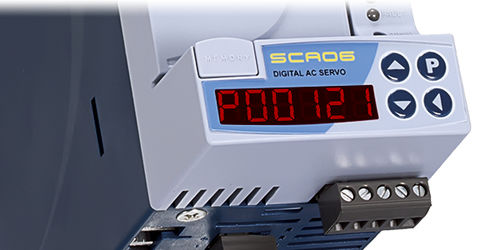

• HMI with six-digit LED display
• USB port
• CANopen standard
• Free WLP programming software
• RFI filter (optional)

Applications
• Packaging machine, dosage dispensers, packers, plastic welding and cutting machines
• Turntables, press feeders, winders
• Positioning systems and robots

Special Functions
• Programmable Logic Controller - PLC, built-in the standard product (ladder programming language - SoftPLC)
• Positioning blocks, built in the standard product
• Safety stop (optional), category 4
• TRACE function (digital oscilloscope) built in the standard product



PARAMETERS

Parameter Name Parameter Value
AC/DC
three-phase
Number of axes
multi-axis
Output signal
digital, USB, CANopen
Product applications
  • positioning
  • control
  • PLC
  • cutting
  • packaging machine
Voltage (V)
230 - 220
Other characteristics
  • high-performance
  • programmable
  • built-in
  • with integrated PLC
