About

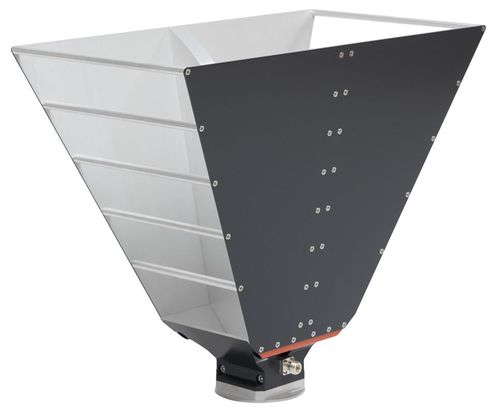

Dual-Ridge Horns are a solution for gain reference, far-field test ranges and reflector feeds for high gain applications.
• Stable gain with frequency
• Low return loss / VSWR
• Wide bandwidth
DESIGN
•Unique design preventing the excitation of unwanted higher order modes in the aperture
•Well-defined smooth radiation pattern throughout the operational bandwidth
•Lightweight for easy handling
SURFACE TREATMENT
•Surtec 650 according to MIL-C 5541E class 3
•Polyurethane paint
REPEATABILITY
•Stiff and robust mechanical design
•Standard MVG circular interface for precision centering
•Precision pin for accurate polarization alignment
•Precision machined
•High reliability coaxial connector
DELIVERED DOCUMENTS
•Typical performance data (TYMEDA™)
•Measured return loss data
EQUIPMENT

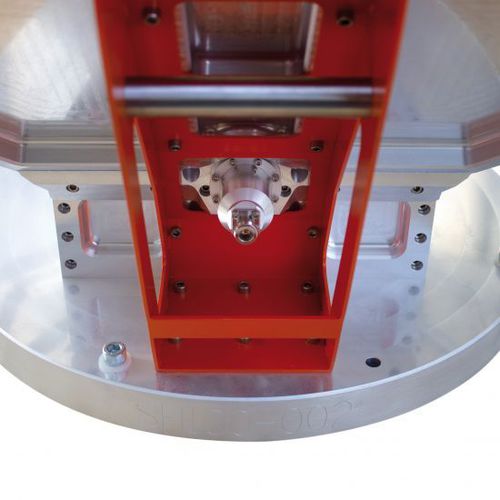

•Mounting flange
•Integrated coaxial transition with high precision connector
•Protective radome for outdoor installation (Optional)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
|
| Type |
probe
|
| Other characteristics |
high-gain
|
| Frequency (Hz) |
100000000 - 50000000000
|
| Gain (dB) |
45 - 45
|
